JobMaster User Manual



Version 4.00 / 12/08/2008



Copyright © 2002 – 2008 Mindleads Technology


Contents



Copyright 3

Document Conventions. 4

Icons. 4

Typographic Conventions. 4

Introduction. 5

System Requirements. 6

Hardware. 6

Software. 6

Install JobMaster 7

Install from CD-ROM.. 7

Install by Archive File. 7

Installation Process. 8

Getting Started. 15

Using JobMaster 16

Create Jobs. 16

Enter Job Name. 16

Define Job Startup. 17

Define Job Chain. 18

Set Actions. 19

Options for File-Actions. 21

Options for Run Programs. 23

Maintain Source. 24

Maintain Destination. 25

Logical directory. 25

FTP Server 26

FTP Options. 27

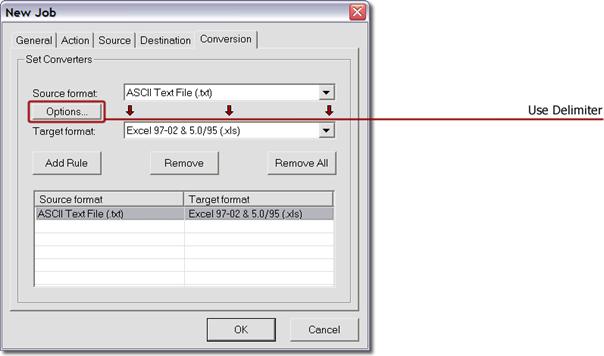

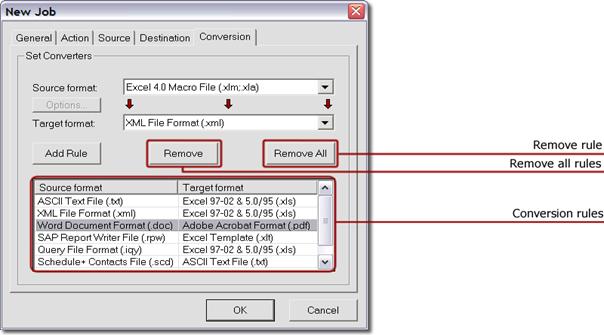

Set File Conversions. 28

Overview File Conversions. 30

Text to Excel Conversion (txt to xls) 31

Working with JobMaster 32

Start / Stop Jobs. 32

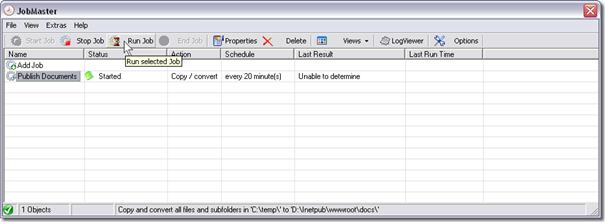

Run jobs manually. 33

Monitoring jobs. 34

Alarm Status. 35

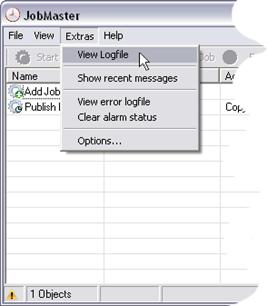

Log file. 36

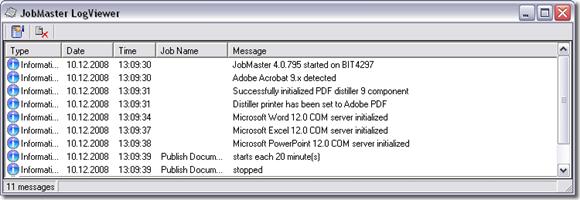

Show recent messages (LogViewer) 37

Configuration. 38

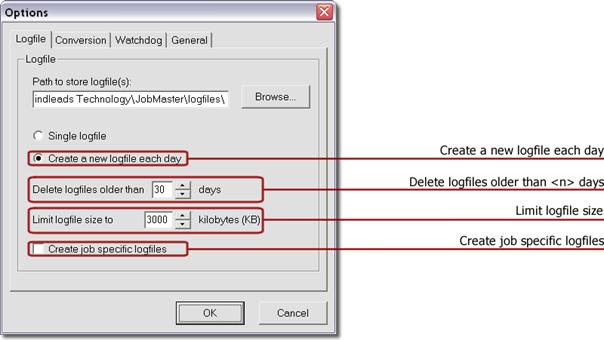

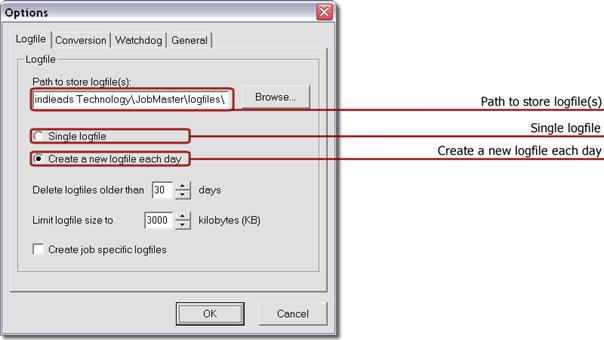

Configure Log file. 38

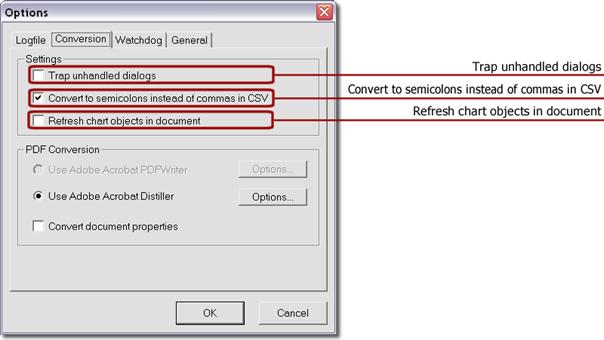

Conversion Options. 40

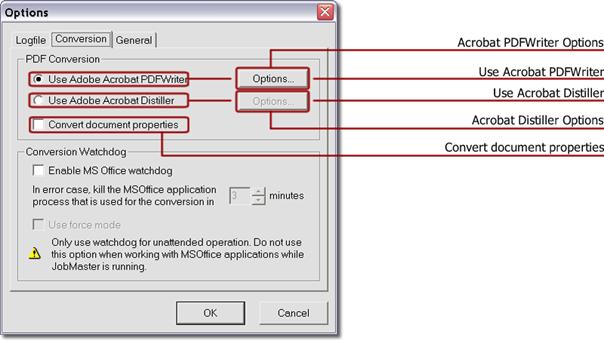

Set PDF Conversion. 40

Convert Document Properties. 41

Acrobat PDFWriter Method. 41

Acrobat Distiller Method. 41

Options for Acrobat PDFWriter 42

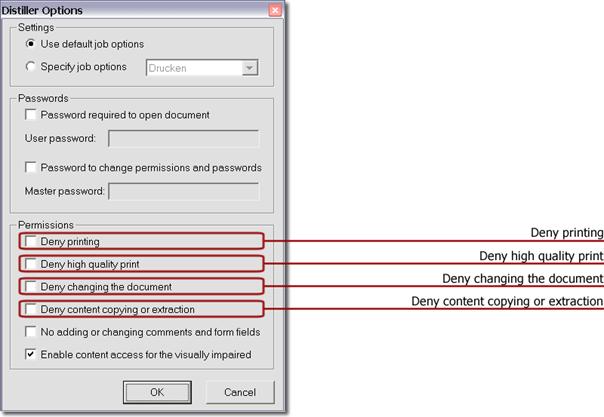

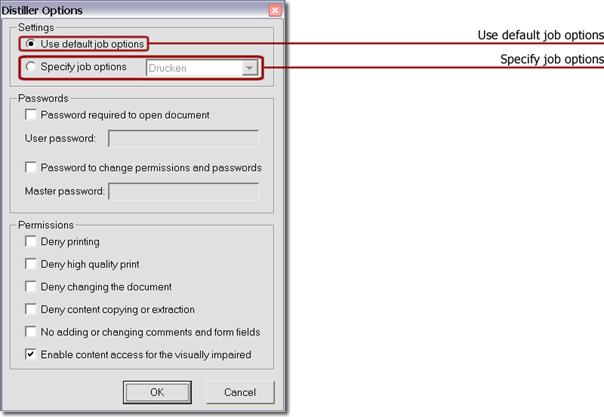

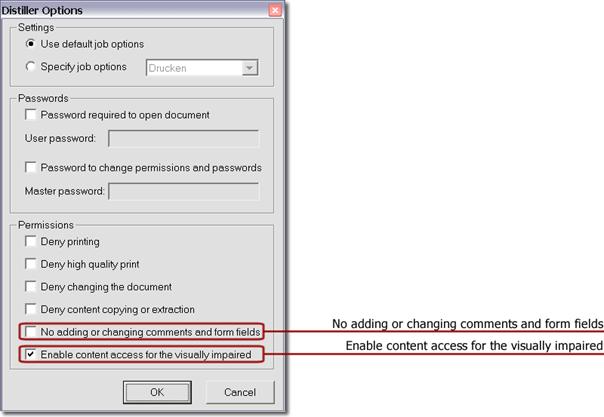

Options for Acrobat Distiller 44

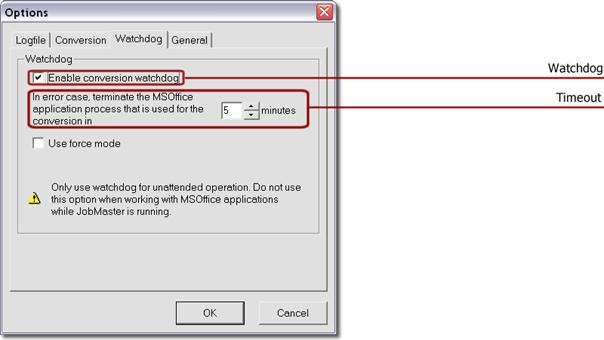

Conversion Watchdog. 48

Force Mode. 49

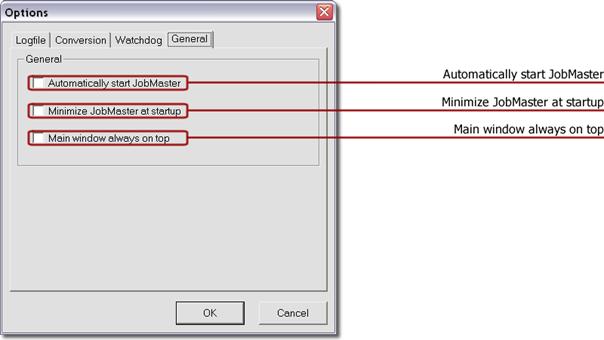

General Settings. 50

Technical Information. 51

Command Line Options. 51

Required Files. 63

Registry Settings. 63



Copyright



Copyright © 2008 Mindleads Technology. All rights reserved.



No part of this documentation may be stored in a retrieval system, transmitted or reproduced it in any way, except in accordance with the terms of the applicable software license agreement. This documentation contains proprietary information of Mindleads Technology and / or its suppliers.



Software products of Mindleads Technology or its sales companies may contain software components of other software producers.



Microsoft®, Windows®, NT®, EXCEL®, Word® and PowerPoint® are registered trademarks of Microsoft Corporation.



Adobe®, Acrobat®, Acrobat PDFWriter®, Acrobat Distiller® and Postscript® are registered trademarks of Adobe Systems Incorporated.



IBM® and Lotus® are registered trademarks of International Business Machines Corporation.



Intel® and Pentium® are registered trademarks of Intel Corporation.



WordPerfect® is a registered trademark of Corel Corporation.



UNIX® is a registered trademark of Open Group.



Mac OS®, Macintosh® are registered trademarks of Apple Computer Incorporated.



SAP is a registered trademark of SAP AG.



HTML, XML and XHTML are registered trademarks of W3C®, World Wide Web Consortium, Massachusetts Institute of Technology.




Document Conventions

Icons



Icon                           Meaning




question

Note

exclamation2

Caution

Tip



Typographic Conventions



Type Style                Represents




Example text

Characters or words cited according to the user interface.

Example text

Symbolizes an exact user input, for example file names, folder names, variable names or parameter names.

<Example text>

Characterizes a variable user input. Pointed brackets indicate that you replace these words or characters with appropriate entries.




Introduction



JobMaster is a powerful task scheduler with built-in conversion and file replication functions. It automatically converts files or documents through entire directory structures into numerous file-formats. JobMaster can manage over 250 different file conversions.



JobMaster is also used to schedule operations such as directory replication, moving of directories, and converting files into different file formats. Jobs can be configured to start automatically after a defined period of time, or daily at any chosen time. JobMaster does not only support local- and network drives but also serves FTP-Servers with its built in FTP-Client.



JobMaster makes it easy to keep your website up-to-date, replicates your directories and converts your business documents or directory structures to more than 40 different file formats. Not only does JobMaster replicate and convert, but also delete files and directories.



Moreover, JobMaster is able to start files automatically. Besides regular executable files such as .exe or .bat, JobMaster is able to start any file type that is registered in the Windows operating system.

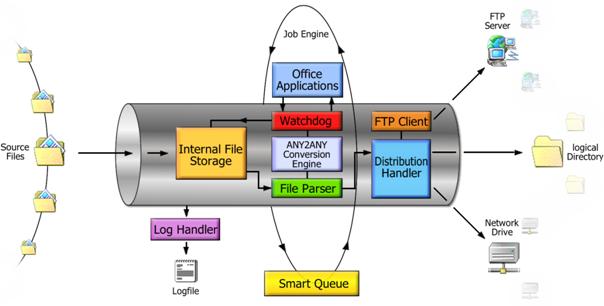

Internally, JobMaster offers an open and modularly constructed architecture. Through Smart Queue Technology, jobs are embedded in a so-called Job Engine circle, which ensures the maintenance of the sequential processing of the job queue, even if a job takes more time than initially planned. The internal file buffer Internal File Storage guarantees highest stability, even with slow network connections. The monitoring interface Watchdog provides job integrity, even in case of failing file conversions.




System Requirements

Hardware



The following hardware equipment is necessary for installation and use of JobMaster software:



Minimum:





Recommended:





Software



JobMaster runs on following operating systems:





Additional software:







questionWindows 2000 / 2003 / XP / Vista require computer administrator rights to do the installation.


Install JobMaster



Normally, the installation process runs without interruption. Depending on the version of your operating system, it may be necessary to update some system components. The installation program automatically detects the required system components and downloads them from the internet if necessary. If you do not have access to the internet, please contact the support-team of Mindleads Technology.





Install from CD-ROM







Install by Archive File

























questionThe installation-software detects already installed versions. If JobMaster is already installed, the version will be updated.





exclamation2Make sure to quit any running instances of JobMaster before starting the installation process. To do so, click the jm1616 icon in the taskbar with the right mouse button and select Exit from the appearing menu.


Installation Process

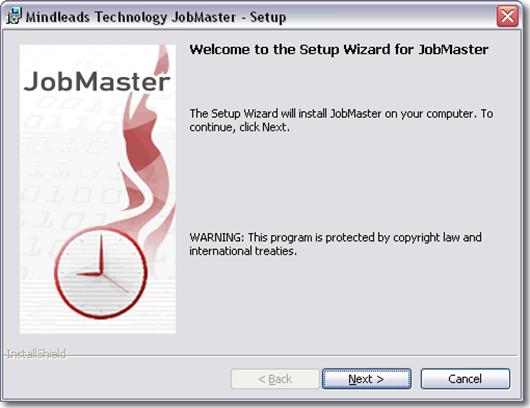

1.    The window below appears. Click Next to start the installation.

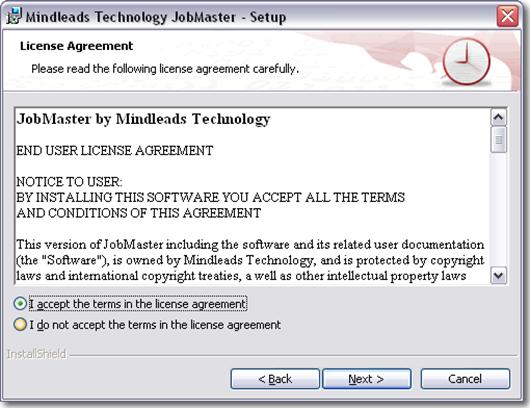

2.    Carefully read the license agreement and select I accept the terms in the license agreement  if you agree to the license conditions.



 Click Next to continue.

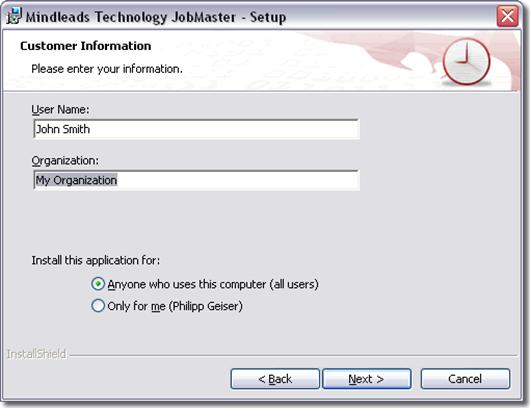

3.    Enter your full name and organization in the text boxes User Name and Organization.



Normally, JobMaster is installed for all users. Choose Only for me if you want to install JobMaster only for the currently logged-in user. This provides that the program-icon in the start menu is not visible for other users.



Click Next to continue.

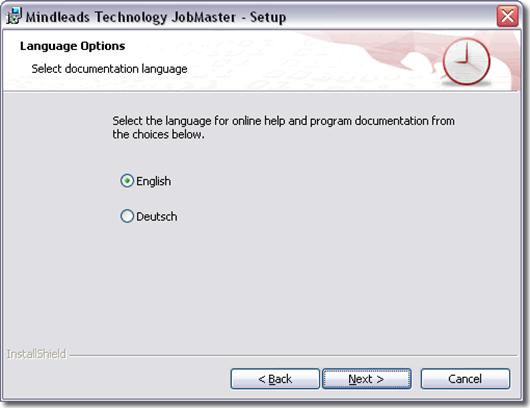

4.    Select the language for program documentation and online help. You can choose either English or German. This setting does not affect the language of the program; it refers only to the documentation.



Click Next to continue.

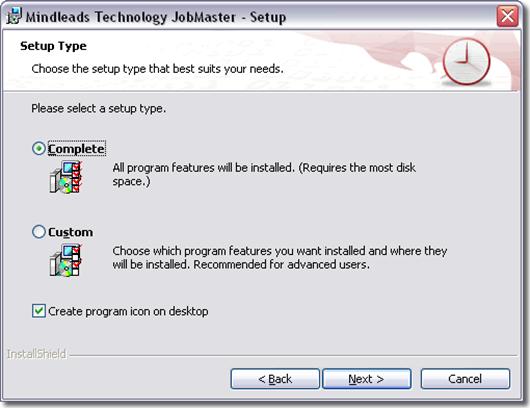

5.    You can change the directory in which JobMaster will be installed. The setup program suggests to install JobMaster in your standard program files folder.



In order to install JobMaster in a different directory, select Custom and enter the path you prefer in the appearing window.



The installation software creates a program icon on your desktop. Deactivate Create program icon on desktop, if you don’t want a program icon on the desktop.



Click Next  to continue.

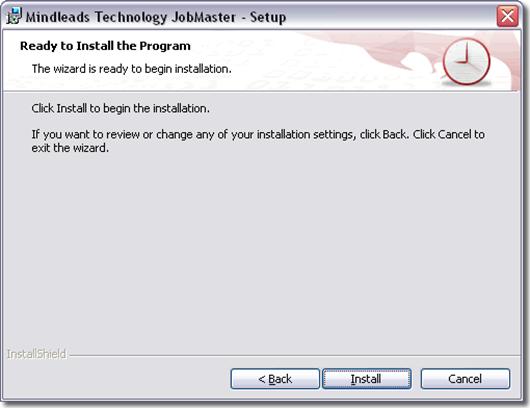

6.    Click Install to start copying the files. If the installation program indicates any running program, try to close them.

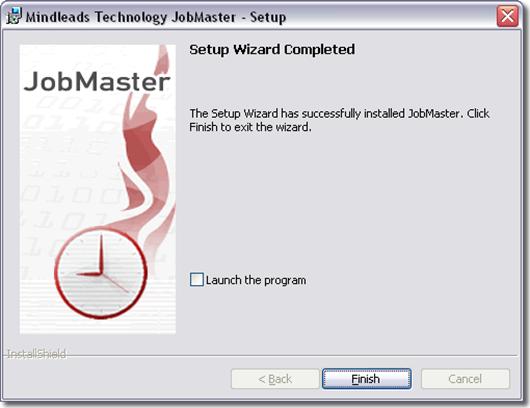

7.    Wait until the installation has completed and click Finish.



In order to start JobMaster immediately, enable the check box Launch the program and click Finish.




















































8.    JobMaster is now installed. To complete the installation, it may be necessary to restart your system. The installation program will notify you if a system restart is required.






Getting Started



Before you start using JobMaster, we highly recommend to familiarize with the functions of the toolbar. It enables you to navigate and handle JobMaster very easily.



Icons             Meaning




Starts a job for automatic operation (Start)

Deactivates a job (Stop)

Runs a job (Run)

Cancels the current job (Cancel)

Job properties (Properties)

Deletes a job (Delete)

Views (Tiles, Small Icons, Details)

Show recent messages (LogViewer)

JobMaster Configuration (Options)








Using JobMaster

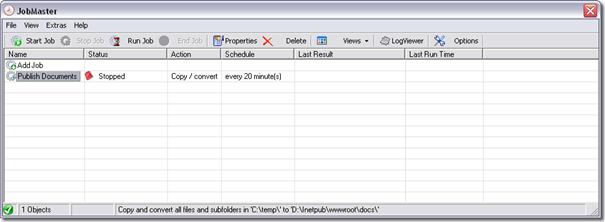

Before you can use JobMaster, you have to create at least one job. To start JobMaster, click the  icon which has been automatically installed on your desktop or select it from the start menu [START / Programs / JobMaster / JobMaster].

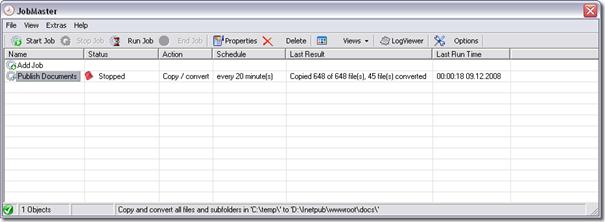

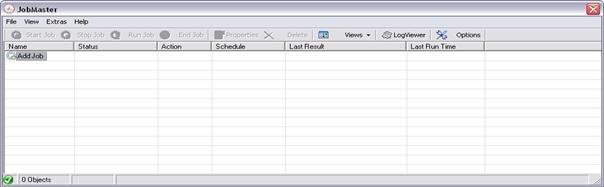

The JobMaster console appears. Double-click Add Job or select Add Job in the File menu to add a job.



Create Jobs

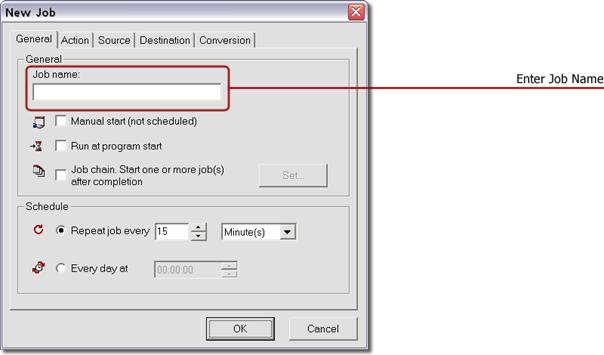

Enter Job Name



Enter any name in the text box Job name. It is recommended to use a descriptive name.

Example: <Publish Documents>

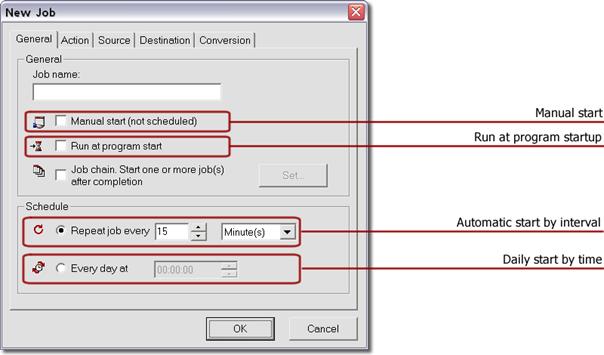

Define Job Startup



Use the General tab to set an automatic or manual execution for the jobs. Choose any of the following options:



·         Manual start: The user manually starts the job.



·         Run at program start: The job starts as soon as the JobMaster Software will be started.



·         Automatic start by interval: The job starts according to the entered interval. You can vary the length of the interval from 1 minute up to 3 weeks. Choose any of the following intervals:

1 – 59 minutes

1 – 24 hours

1 – 21 days

1 – 3 weeks



·         Daily start by time: This starts the job daily at a defined time.







question



If two or more jobs are overlapping in time, the next job starts automatically after the current job has finished operating.

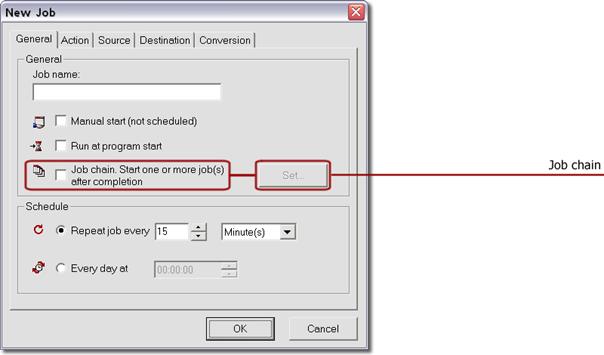

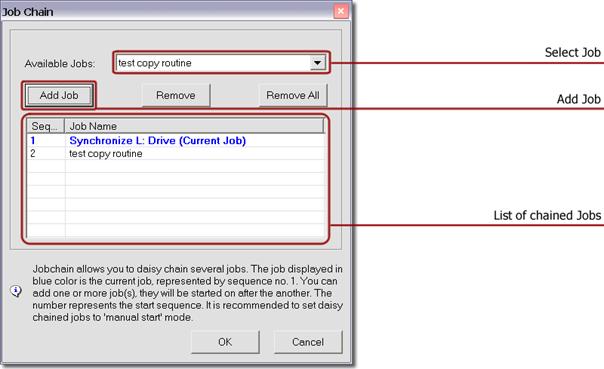

Define Job Chain



With Job Chain Option you can daisy chain one or more jobs. In order to enable Job Chain, click the checkbox Job chain and then click Set.





The job displayed in blue color is the current job, represented by sequence no. 1. All following jobs in list will be executed automatically.

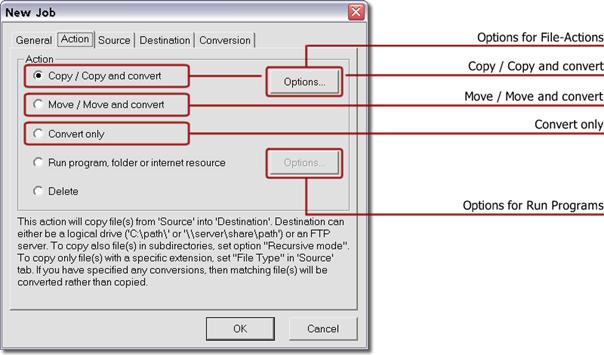

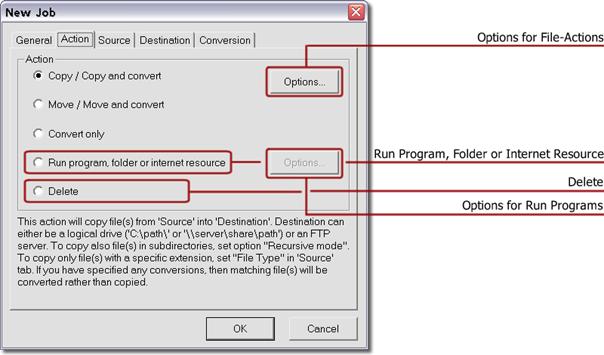

Set Actions



Use the Action tab to select an action for the current job. Choose any of the following options:



·         Copy / Copy and convert

Copies files from the specified source drive to a destination directory. If you choose any conversion for this action, JobMaster will first convert the corresponding files, and then copy them in the destination drive.



·         Move / Move and convert

This action moves files from the specified source drive to a destination directory. The files will be copied to a temporary directory first, and will be deleted later in the source directory, if the copy process was successful. If you choose any conversions for this action, JobMaster will first convert the matching files, then copy them to the destination drive and delete them in the source drive after successful copying.



·         Convert only

This action only converts files that correspond to the file extensions you have selected under Conversion. For example, if you have selected the conversion for .doc and .xls, the matching files of the source drive will be converted rather than copied. To use this action you must select at least one conversion.








·         Run program, folder or internet resource

Run any program, file, folder or internet resource. Not only can you run any executable file like .exe, .bat or .cmd, it also possible to run any file that has a valid shell association. For example, you can set JobMaster to run a word file (.doc). JobMaster then starts the application associated with the file extension .doc (Winword) and opens the file in it.



You can also enter any valid internet address. For example:

http://www.mindleads.com/en

JobMaster will start then the default internet browser and displays the selected internet address in it.



·         Delete

This action deletes a file or directory. Use the Recursive Mode in order to configure the action to delete all files and subfolders of the source directory. If you enter a specific file extension, then only matching files will be deleted. Use All Files to delete all files in the source directory. If the selected directory contains any subfolders, and the Recursive Mode is disabled, then only the contents of the directory will be deleted.

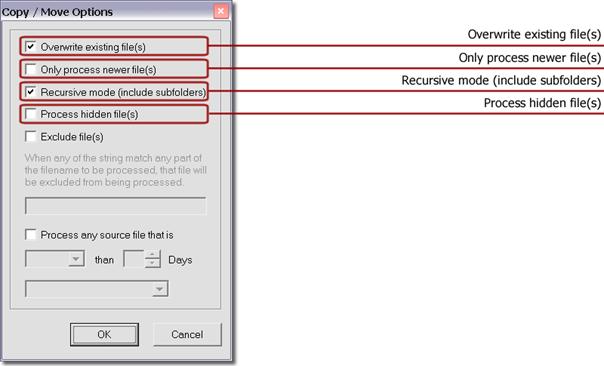

Options for File-Actions



There are additional options for the actions copy / move / convert. Choose the Options button under the Action tab to select any of the following options:



·         Overwrite existing file(s)

Overwrite files that already exist in the destination directory.



·         Only process newer file(s)

Copies only files that either do not exist in the destination directory yet or have a newer modification date in the source directory. When JobMaster converts files, it checks the file name given by the conversion rather than the original file name.

Example: Copy the source file C:\File1.doc to D:\ and convert it into pdf format. In this example JobMaster checks, if File1.pdf already exists in the destination directory, and if the file has a newer modification date than the file in the source directory.



·         Recursive Mode (include subfolders)

This option will include any subfolders in the source directory. For the actions copy / move / convert, the folder structure will be completely imitated in the destination directory. If the job is configured to use the delete action, then all files and subfolders will be deleted in the source directory.



·         Process hidden file(s)

Include also hidden files (files with hidden attribute).

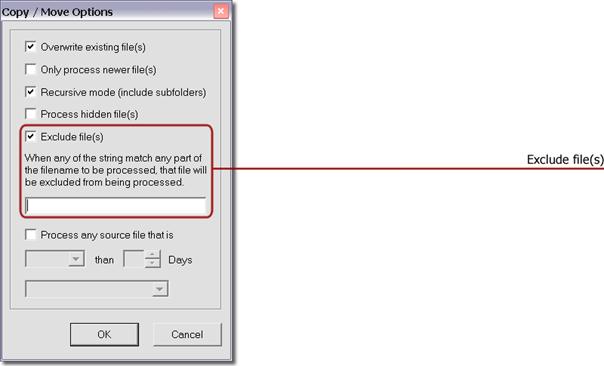

·         Exclude file(s)

You have the possibility to exclude files from processing. Excluded files will not be considered during future actions. In order to exclude files, enter a character or a character string which is part of the file name in the text box. When any of the string matches any part of the filename to be processed, that file will be excluded from being processed.



Example 1:

Entered value: Data

All files which contain the character string Data will be excluded from future actions. For example:



Business data.doc

DATA1.xls

Data-sampling.txt



You are also able to enter a single character.



Example 2:

Entered value: -

All files containing the character - will be excluded. For example:



Business-data.doc

-Business.xls

Data sampling - 1.txt

-template-.doc

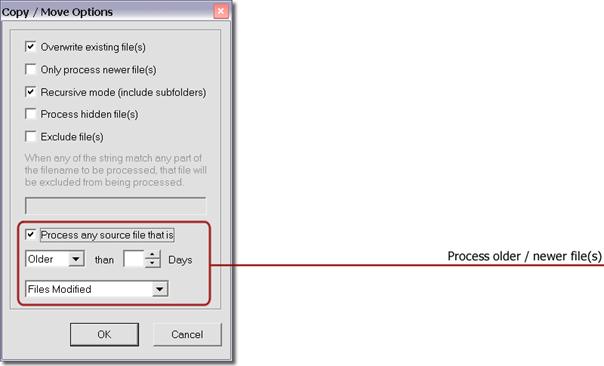

·         Process any source file that is

Use this option to process only older or newer source files. Maximum days are limited to 999.



Example:

Process any source file that is older than 60 Days



Only files older than 60 days will be processed.



You can use different date attributes:



Files modified: date of the last modification

Files created: creation date of the file

Files last accessed: Last read or write access to file

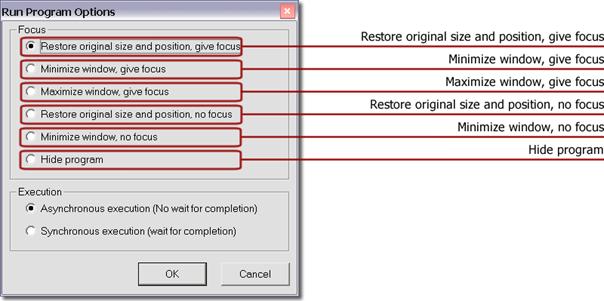

Options for Run Programs



There are additional options for the action run program or registered file. In the Action tab, click the Options button to select any of the following additional options:



·         Restore original size and position, give focus

The window of the started program will be restored to its most recent size and position. The program will be activated (has focus).



·         Minimize window, give focus

The program will be started with minimized window with focus.



·         Maximize window, give focus

The program will be started with maximized window with focus.



·         Restore original size and position, no focus

The window of the started program will be restored to its most recent size and position, the currently active window remains active (no focus).



·         Minimize window, no focus

The program will be started with minimized window, the currently active window remains active (no focus).



·         Hide program

The window of the started program will be hidden. It is not visible for the user, that means you are not able perform any interaction with it. This option is recommended, for example, if you plan to start a batch file in the background, whose execution should not be visible on the screen.




·         Asynchronous execution
Asynchronous execution of files is the default setting. In this mode JobMaster does not wait for the completion of the file at runtime.



·         Synchronous execution

In synchronous mode JobMaster waits for the completion of the program. This may be helpful for batch files.





exclamation2If you run a program in synchronous mode, make sure that the program does not ‘hung’ at runtime. After execution of a program in synchronous mode, JobMaster does not have any control over it. In error case it would wait for ever.

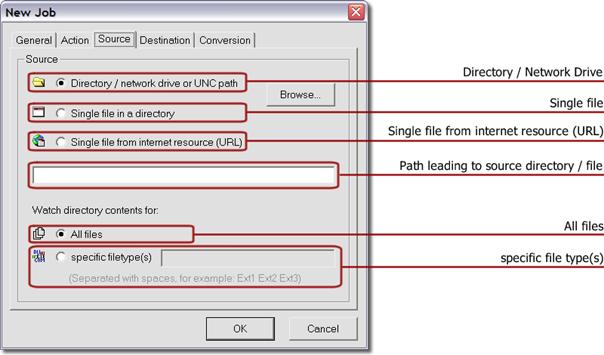

Maintain Source



Use the Source tab to define information for the source directory / source file. You are able to define a single file, the content of a directory or a single file from an internet resource (URL) as source.



·         Directory on disk- or network drive. Example: C:\My Documents

·         Single file on disk- or network drive. Example: C:\My Documents\File1.doc

·         Single file from internet resource (URL).

Example: http://www.domain.com/data/file1.xls



Use the Browse button for easier navigation, or directly enter the path / file name in the text box. Always enter a fully qualified path. JobMaster also accepts UNC path (Universal Naming Convention) as source. Look at the following example for a UNC path / file:



UNC-directory:         <\\server\share\documents>

UNC-file:                 <\\server\share\documents\My File.doc>



If you define a directory as source, there are further options available. Select All files to include all files of the defined path in the execution. Select specific filetype to restrict the file search to a specific file extension. When you choose the file extension doc for example, then only doc-files are considered during the current job. Make sure to enter only alphanumeric characters and avoid additional symbols like . or *. You can enter multiple file extensions. Separate them with blanks.

Example: doc xls txt rtf pdf exe

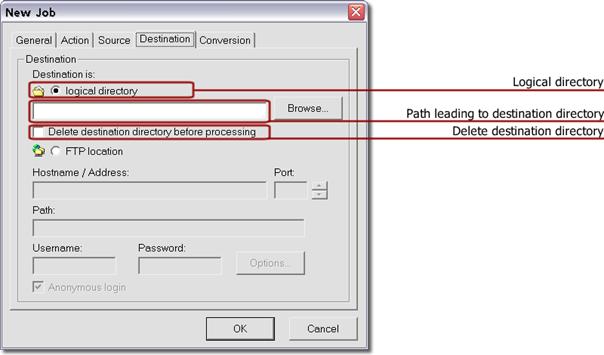

Maintain Destination



Use the Destination tab to define the destination of the copied or moved (converted) files. You can either choose a logical directory or an FTP server as destination.

Logical directory



A logical directory is any path constructed according to Windows 32 conventions. Either local or network drives are supported. UNC path are also supported by JobMaster. Always enter a fully qualified path. Example:



Network drive:     <X:\Inetpub\wwwroot\docs>

UNC path:        <\\server\share\wwwroot\docs>



JobMaster is checking whether a valid drive has been entered. JobMaster does not check the path behind the drive, because it automatically creates any entered path which does not exist yet.



Delete destination directory

This option deletes the whole content of the destination directory before the process starts.

exclamation2



This option deletes ALL FILES AND SUBFOLDERS in the destination path without further warning.

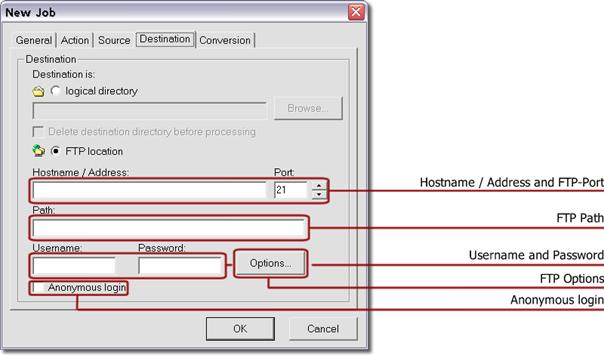

FTP Server



If you define an FTP server as destination, files will be copied directly via FTP (File Transfer Protocol).



Hostname / Address

Enter the FTP server’s fully qualified hostname in the text box. Make sure not to use any forward slash /. Example:

<ftp.mindleads.com>



Port

Enter the corresponding FTP server port. In case you do not enter any port in the text box, JobMaster will use the FTP standard port (21).



Path

Enter the path of the destination directory in the text box, but avoid entering a forward slash / at the beginning. Example:

<pub/wwwroot/docs>



Username / Password / Anonymous Login

If a user account is needed for access to the FTP server, enter a valid FTP user account with write access. Use Anonymous login in case the FTP server is configured to accept it, but generally an anonymous user does not have write access on an FTP server. To guarantee the highest possible security, it is recommended to create your own FTP user account with write access on the FTP server.

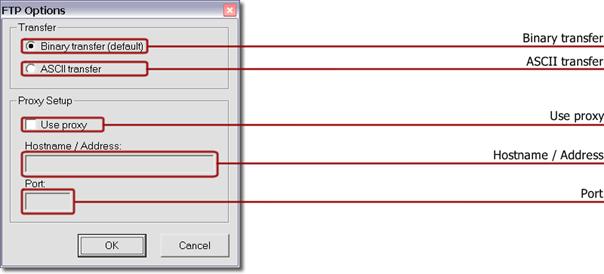

FTP Options



Use the Options button to choose any of the following extended configurations for the entered FTP server:



Binary Transfer

The Binary transfer mode will successfully transfer all types of files, including ASCII text files. In contrast to ASCII transfer, this mode does not alter files.



ASCII Transfer

Use ASCII transfer to transfer ASCII text files much faster than in the binary mode. It also adjusts invisible characters (such as the line-feed character) which appear at the end of a line and are different on Windows, MacOS and UNIX computers. Only use this mode for transferring ASCII files.



Use Proxy

If this option is selected, JobMaster will establish the connection to the FTP server via a proxy server.



Hostname / Address

Enter the fully qualified name of the proxy server, but avoid entering any forward slash / in the text box. Example:

<proxyserver.mindleads.com>



Port

There is no default value for the port of the proxy server. Ask your system administrator, if you are unsure.



hint



         In general binary transfer is sufficient, so if you are not sure, set it as default.


Set File Conversions



Use the Conversion tab to set file conversions. In order to use this function, Office 2000 or higher has to be installed on your system. You may define up to 650 different file conversions. JobMaster can convert any of the following file types as source format:



·         Word Document Format (.doc;.docx)

·         Excel File Format (.xls;.xlsx)

·         PowerPoint Presentation Format (.ppt;.pptx)

·         Web Page (.htm;.html)

·         ASCII Text File (.txt)

·         XML File Format (.xml)

·         Rich Text Format File (.rtf)

·         WebArchive File (.mht;.mhtml)

·         Comma Separated Values File (.csv)

·         Data Interchange Format File (.dif)

·         dBASE File (.dbf)

·         Works 2.0 File / Lotus Worksheet (.wks)

·         Symbolic Link Format File (.slk)

·         PowerPoint SlideShow File (.pps)

·         Word Template (.dot)

·         Excel Template (.xlt)

·         PowerPoint Template (.pot)

·         Text with Layout Format (.ans)

·         WordPerfect 5.0 File (.doc)

·         WordPerfect 6.x File (.wpd)

·         Lotus 1-2-3 File (.wk1;.wk3;.wk4)

·         Outlook Address Book File (.olk)

·         Personal Address Book File (.pab)

·         Schedule+ Contacts File (.scd)

·         Windows Write File (.wri)

·         Works 4.0 File (.wps)

·         Word for Macintosh Format (.mcw)

·         Excel Text File (.prn)

·         Query File Format (.iqy)

·         Quattro Pro/DOS File (.wq1;.wb1)

·         Excel 4.0 Macro File (.xlm;.xla)

·         Excel Workbook File (.xlw)

·         SAP Report Writer File (.rpw)

·         Harvard Graphics Show File (.sh3)

·         Harvard Graphics Chart File (.ch3)

·         Freelance 1.0 - 2.1 Files (.pre)

·         Visio Drawing (.vsd;.vdx)

·         Visio Shapes File (.vss;.vsx)

·         Visio Template (.vst;.vtx)

·         Visio Workspace File (.vsw)

·         Scalable Vector Graphics File (.svg;.svgz)

·         AutoCAD Drawing (.dwg;.dxf)

·         Compressed Enhanced Metafile (.emz)

·         Enhanced Metafile (.emf)

·         GIF Format (.gif)

·         JPG Format (.jpg)

·         PNG Format (.png)

·         TIF Format (.tif)

·         Windows Bitmap (.bmp;.dib)

·         Windows Metafile (.wmf)

The conversions will be applied to all files with a corresponding file extension.



Set file conversions rules:



In order to add a conversion rule, select first the source format. Then select the desired target format that should be used for conversion rule. Then click ‘Add Rule’. You can add up to 40 different conversion rules per job.





To remove a conversion rule, select the conversion rule with the left mouse button then click the ‘Remove’ Button. To remove all rules, click ‘Remove All’.



hintFor best conversion results it is recommended that Office 2007 and Acrobat 8 or higher is installed on your system.


Overview File Conversions



The following table shows an overview of all possible file conversions.



Textfeld: Target format

Source format



Adobe Acrobat Format (.pdf)

Web Page (.htm;.html)

ASCII Text File (.txt)

Word Document Format (.doc)

Rich Text Format File (.rtf)

Word Template (.dot)

Text with Layout Format (.ans)

WordPerfect 5.0 File (.doc)

WebArchive File (.mht;.mhtml)

Works 4.0 File (.wps)

XML File Format (.xml)

Web Page, filtered (.htm)

Comma Separated Values File (.csv)

Data Interchange Format File (.dif)

Excel 2.1 (.xls)

Excel 3.0 (.xls)

Excel 4.0 (.xls)

Excel 5.0 / 95 (.xls)

Excel 97-02 & 5.0/95 (.xls)

dBASE II (.dbf)

dBASE III (.dbf)

dBASE IV (.dbf)

Works 2.0 File / Lotus Worksheet (.wks)

Excel Template (.xlt)

Symbolic Link Format File (.slk)

Windows Bitmap (.bmp)

GIF Format (.gif)

JPG Format (.jpg)

PNG Format (.png)

Web Page, dual (.htm; .html)

Web Page, V3 (.htm; .html)

PowerPoint Presentation Format (.ppt)

Powerpoint 7 (.ppt)

Powerpoint Template (.pot)

PowerPoint SlideShow File (.pps)

TIF Format (.tif)

Word Document (.doc)

a

a

a



a

a

a

a

a

a

a

a

















































Excel File (.xls)

a

a

a











a



a



a

a

a

a

a

a

a

a

a

a

a

a

a























PowerPoint Presentation (.ppt)

a

a





a







a

































a

a

a

a

a

a



aa

a

a

a

Web Page (.htm;.html)

a



a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

ASCII Text File (.txt)

a

a



a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

XML File (.xml)

a

a

a

a

a

a

a

a

a

a



a

a

a

a

a

a

a

a

a

a

a

a

a

a























Rich Text File (.rtf)

a

a

a

a



a

a

a

a

a

a

a



























a

a

a

a

a

a

a

a

a

a

a

Web Archive File (.mht;.mhtml)

a

a

a

a

a

a

a

a



a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

CSV File (.csv)

a

a

a











a



a





a

a

a

a

a

a

a

a

a

a

a

a























DIF File (.dif)

a

a

a











a



a



a



a

a

a

a

a

a

a

a

a

a

a























dBASE File (.dbf)

a

a

a











a



a



a

a

a

a

a

a

a

a

a

a

a

a

a























Works 2.0 File / Lotus Worksheet (.wks)

a

a

a











a



a



a

a

a

a

a

a

a

a

a

a



a

a























Symbolic Link File (.slk)

a

a

a











a



a



a

a

a

a

a

a

a

a

a

a

a

a

























PowerPoint Slideshow(.pps)

a

a

a











a

































a

a

a

a

a

a

a

a

a

a

a

Word Template (.dot)

a

a

a

a

a



a

a

a

a

a

a

















































Excel Template (.xlt)

a

a

a











a



a



a

a

a

a

a

a

a

a

a

a

a



a























PowerPoint Template (.pot)

a

a





a







a

































a

a

a

a

a

a

a

a



a

a

Text with Layout File (.ans)

a

a

a

a

a

a



a

a

a

a

a

















































WordPerfect 5.0 File (.doc)

a

a

a

a

a

a

a



a

a

a

a

















































WordPerfect 6.x File (.wpd)

a

a

a

a

a

a

a

a

a

a

a

a

















































Lotus 1-2-3 File (.wk1;.wk3;.wk4)

a

a

a











a



a



a

a

a

a

a

a

a

a

a

a

a

a

a























Outlook Address Book File (.olk)

a

a

a

a

a

a

a

a

a

a

a

a

















































Personal Address Book File (.pab)

a

a

a

a

a

a

a

a

a

a

a

a

















































Schedule+ Contacts File (.scd)

a

a

a

a

a

a

a

a

a

a

a

a

















































Windows Write File (.wri)

a

a

a

a

a

a

a

a

a

a

a

a

















































Works 4.0 File (.wps)

a

a

a

a

a

a

a

a

a



a

a



























a

a

a

a

a

a

a

a

a

a

a

Word for Macintosh File (.mcw)

a

a

a

a

a

a

a

a

a

a

a

a

















































Excel Text File (.prn)

a

a

a











a



a



a

a

a

a

a

a

a

a

a

a

a

a

a























Query File (.iqy)

a

a

a











a



a



a

a

a

a

a

a

a

a

a

a

a

a

a























Quattro Pro/DOS File (.wq1;.wb1)

a

a

a











a



a



a

a

a

a

a

a

a

a

a

a

a

a

a























Excel 4.0 Macro File (.xlm;.xla)

a

a

a











a



a



a

a

a

a

a

a

a

a

a

a

a

a

a























Excel Workbook File (.xlw)

a

a

a











a



a



a

a

a

a

a

a

a

a

a

a

a

a

a























SAP Report Writer File (.rpw)

a

a

a











a



a



a

a

a

a

a

a

a

a

a

a

a

a

a























Harvard Graphics Show File (.sh3)

a

a





a







a

































a

a

a

a

a

a

a

a

a

a

a

Harvard Graphics Chart File (.ch3)

a

a





a







a

































a

a

a

a

a

a

a

a

a

a

a

Freelance 1.0 - 2.1 File (.pre)

a

a





a







a

































a

a

a

a

a

a

a

a

a

a

a

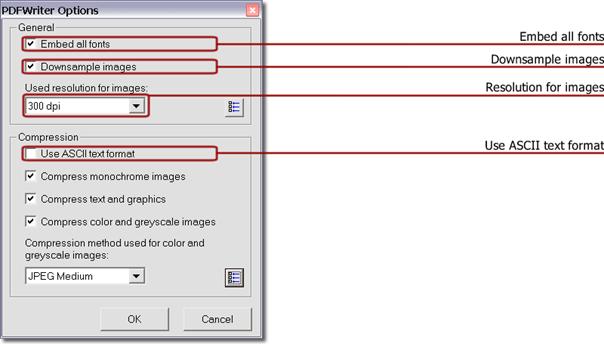

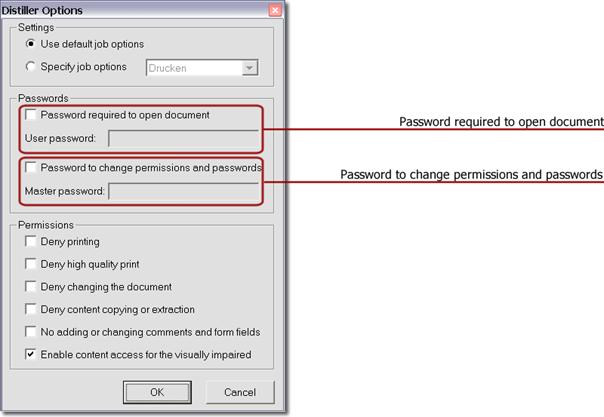

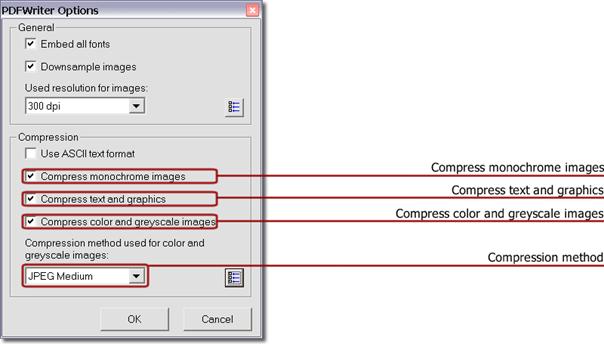

questionquestionIn order to create Adobe Acrobat (.pdf) files, the Adobe Acrobat software must be installed on your system. Adobe Acrobat Reader is not sufficient to create pdf files.


Text to Excel Conversion (txt to xls)



If you want JobMaster to convert text files (.txt file extension) to Excel sheets (.xls file extension), then you can set delimiters to separate each field.

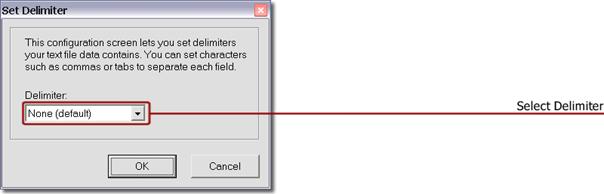

Click the ‘Options’ button and select in the appearing window an appropriate delimiter that is used in your text file. You can select characters such as commas or tabs to separate columns in your excel file. Choose any of the following delimiter chars:



·         None (default)

·         Tabs

·         Commas

·         Spaces

·         Semicolons




Working with JobMaster



This chapter contains a description of the JobMaster console and its use. Moreover it gives you information about administration and monitoring of the jobs.

Start / Stop Jobs



The job you have just created appears in the JobMaster console with status  Stopped.





Before it will be automatically executed in the future, you have to start the created job. To do so, click on the job and select the Start  icon in the toolbar.





The Status color is green now, which symbolizes that the job Publish Documents is started and will be automatically executed every 20 minutes.



If you want to stop the automatic execution of a job, select the Stop  icon in the toolbar. Note that a currently running job can only be cancelled by selecting the End Job  icon.


 Run jobs manually



You can manually run every job, no matter whether it is configured for manual or automatic execution.



As shown in the image below, select the Run  icon to run a job manually.



You can run all saved jobs by clicking Run all Jobs in menu File.







hintFor easier navigation, right-click jobs in the console. This allows you faster access to the job-menu.




Monitoring jobs



The JobMaster console always shows the current status of every single job. The following table shows an overview of all possible status icons.



Icon               Meaning




Job is stopped; there will be no automatic execution.

Job is started; the corresponding job will be executed pursuant to the selected job action.

Job is running and executes the selected action.

Job is chained with another job and will be executed as soon as the running job completed its action.

Job is set to manual execution and will not be started automatically.

Another job is currently running. The selected job gets the status waiting and will be executed after the currently running job has finished operating.



In the following example the job Publish Documents is configured to copy every 20 minutes all files from H:\Data\Documents\* to D:\Inetpub\wwwroot\docs, and convert all occurring WinWord files (.doc) to Adobe Acrobat files (.pdf). The source directory H:\Data\Documents\ contains 648 files, including 45 WinWord files (.doc).



The column Last Result summarizes the executed actions after the job is finished:






Alarm Status

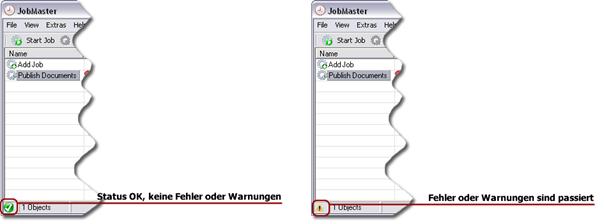

JobMaster’s internal monitoring system makes it possible to recognize warnings or errors during operation. If errors or warnings occur, these are symbolized in the status bar by an icon.



The symbol  means that no errors occurred since the program start of JobMaster. The  symbol states that one or more errors or warnings were generated. Moreover the JobMaster icon in the taskbar will start to blink.





For further analyzing errors or warnings, use View Error Log file in the Extras menu. The error-log file will be displayed then, which records all errors and warnings. For more details use the LogViewer or take a look at the log files.





To cancel alarm-status, use Clear Alarm Status in Extras menu. Thus original status is restored and status-icons change to normal operation. This action does not delete entries in the error-log file.




Log file



View the log file to get detailed information about a job. The log file is an important component for monitoring jobs, because it contains a detailed list of all executed actions. You can easily find the cause of any occurring error by viewing the log file.



Select Extras / View Log file in the menu to view the log file.



View log file:



Log file summary report after finish of the job Publish Documents:



17.04.2003 10:15:41 'Publish Documents':



                    Summary report

                    ==============

Operation: Copy / convert * from H:\Daten\Documents\ to D:\Inetpub\wwwroot\docs\

                    Total file(s) found:     242

                    Total file(s) processed: 242

                    Total Errors:            0

                    DOC file(s) converted:   153 Errors: 0

                    TXT file(s) converted:   0 Errors: 0

                    XLS file(s) converted:   0 Errors: 0

                    PPT file(s) converted:   0 Errors: 0

                    HTML file(s) converted:  0 Errors: 0

                    Total file(s) converted: 153


Show recent messages (LogViewer)



The LogViewer records all activities and can display them in real-time. Click the  icon to start the LogViewer. Alternatively you can also use Show recent messages in menu Extras.



Letzte Meldungen ansehen:



The LogViewer appears then. The most recent messages will be displayed. If there are more than 6000 messages, the oldest are deleted. This does not have influence on the log file generated by JobMaster, the LogViewer gives only a short overview of the current activities.





Double-click a message for detailed excerpt of the message. In order to switch between messages, use the arrow-buttons.






Configuration



Select Extras / Options in the menu to set extended configurations for JobMaster.



Configure Log file



Path to store log file(s)



The log files created by JobMaster will be created in the directory <Installation directory\JobMaster\log files>. You have the possibility to enter a different directory for the log file path. To guarantee the highest possible performance, it is recommended though to choose a local path. If you also want to have the log files in a network drive, you can create a job to copy the files in a desired interval to any network drive.



Single log file



By selecting Single log file, all actions of JobMaster will be saved in a single file. The filename of the log file is JobMaster.log, and can be found in the entered path.



Create a new log file each day



Use this option to daily create a new log file. In this setting the filename of the log file will be JobMasterYYMMDD.log.



Delete log files older than <n> days



Using this option, you can define the number of days you want to keep the log files on your hard drive. Choose a value between 2 and 365. Files older than the entered value will be deleted.



Limit log file size



Use this option to limit the size of the created log files. It is recommended to enter a value of at least 500 KB.

question



You can enter a value between 100 and 6000 KB.



Create job specific log files



Use this option if you want to create an own log file for each job.





hint



            Use the Browse button for easier navigation.




Conversion Options



Use the Conversion tab to define the file-conversion settings.

Set PDF Conversion



Select one of the two following methods to convert files to Adobe Acrobat format (.pdf):



·         Adobe Acrobat PDFWriter

·         Adobe Acrobat Distiller



JobMaster suggests the Acrobat PDFWriter method as default setting. Read the following sections for further information about the two methods.







hintIf Adobe Acrobat 6 or higher is installed on the machine, the configuration window looks different because the PDFWriter method is no more available. The PDF Printer replaces the Acrobat Distiller and is named Adobe PDF.


Convert Document Properties



This option makes sure that the document properties of Word, Excel and PowerPoint documents are converted. The fields Title, Theme, Author and Keywords are also apparent in the Acrobat PDF format as document properties. If you use Acrobat 6 or higher for document conversion on your system, the fields Manager, Company, Category and Comments are additionally converted. If you have Acrobat 4 or Acrobat 5 on your system, the function can only be used in conjunction with the Acrobat PDFWriter method.



exclamation2This option requires higher system resource consumption. Ensure that a minimum of 256 MB RAM is available on your system.

Acrobat PDFWriter Method



The Acrobat PDFWriter method is particularly suirable to create PDF files in a fast and efficient manner. Use it especially for converting documents that contain a lot of text (i.e. business documents).



If you want to convert files into Adobe Acrobat format (.pdf) using the PDFWriter method, the Acrobat PDFWriter printer must be installed on your system. If the name of the Acrobat PDFWriter printer is not designated as Acrobat PDFWriter, you have to change a registry entry. For further information read the chapter “technical information” on page 54.





hintIn order to install Acrobat PDFWriter printer, insert in the Adobe Acrobat4/5 CD ROM and select Custom in the installation program. You can select Acrobat PDFWriter printer for installation.



Acrobat Distiller Method



The Acrobat Distiller method is especially suitable for converting documents that contain many graphics because it allows complex settings. You can deny unauthorized access to the files by activating particular security settings.



If you want to convert files into Adobe Acrobat format (.pdf) using the Acrobat Distiller method, the Acrobat Distiller software and the Acrobat Distiller printer must be installed on your machine. If the name of the Acrobat Distiller printer is not designated as Acrobat Distiller, you have to change a registry entry. For further information read the chapter “technical information” on page 54.



exclamation2Windows 2000 / XP, 2003, Vista require administrator authorization for the use of Acrobat Distiller method.




Options for Acrobat PDFWriter



In order to create pdf files you can use extended options. Choose the Options button under the Conversion tab to select any of the following options:



Embed all fonts

This option provides the embedding of all fonts in the file, which means that all fonts used in the generated pdf file will be represented correctly on other systems.



Downsample images

Use this option to further reduce file size by down sampling images to a lower resolution. Downsampling reduces the number of pixels in a file by averaging the color of pixels in a determined area and replacing that area with one pixel of the averaged color.



Used resolution for images

This option determines the resolution for images. You are able to choose the number of dpi (dots per inch) with which a new pdf file will be printed.



Use ASCII text format

Use this option to create Adobe pdf files in ASCII text format. This provides that pdf files can be opened in a text editor for reading or editing, but it also increases file size.







hint



To reset to the default values, click the defaulticon icon.




Compress monochrome images

Use this option to apply compression to monochrome images in pdf files. Note that PDFWriter applies compression to all monochrome images in the pdf files.



Compress text and graphics

Use this option to apply compression to text and graphics in pdf files. PDFWriter performs with ZIP compression, a lossless compression method.



Compress color and greyscale images

This option applies compression to color or greyscale images by using the selected Compression Method. PDFWriter will apply the compression to all color and greyscale images in the pdf file. The higher the compression of the images, the smaller is the size of the pdf file. The quality of the images will be reduced though. Choose one of the following compression methods:



·         JPEG High

·         JPEG Medium-High

·         JPEG Medium

·         JPEG Medium-Low

·         JPEG Low

·         ZIP






Options for Acrobat Distiller



Extended options are available for the Acrobat Distiller conversion method. Choose the Options button under the Conversion tab to select any of the following options:



Use default job options

Select this option, if you want JobMaster to use the default options of Acrobat Distiller.



Specify job options

Select this option if you prefer a specific Acrobat Distiller option. Moreover, using the Acrobat Distiller software, you can create individual options. JobMaster automatically recognizes these options and uses them for the conversion of PDF files.









questionThe security settings are valid for any program which uses Adobe Acrobat software. Moreover, you can use any of these programs to change the security settings.


User password

Select the ‘Password required to open document’ option and specify a password to prevent users from opening your PDF files. If you enter a password here, your PDF files can only be opened by typing the password you specified.



Master password

Select the ‚Password to change permissions and passwords’ option and specify a password to restrict users from changing, extracting, copying or printing your PDF files. If you enter a password here, the security settings can only be changed by typing the password you specified.



After entering the passwords in the text box, you have to confirm them in a second dialog window.







exclamation2



If you forget a password, you are no longer able to access the files or change the security settings. ALWAYS STORE YOUR PASSWORDS IN A SECURE LOCATION!




You can choose any of the following security restrictions. In order to enable these settings, you must specify a Master password first.



Deny printing

When this restriction is enabled, users cannot print PDF files.



Deny high quality print

Enabling this setting restricts users from printing files at high resolution. Printing at up to 150-dpi resolution is allowed.



Deny changing the document

Enabling this setting prevents users from changing the document, including filling in signature and form fields.



Deny content copying or extraction

Enabling this setting prevents users from copying or extracting text or graphics.











questionIf Adobe Acrobat 4 or lower is installed on your machine, some of the security restrictions may not be available and cannot be selected.






No adding or changing comments and form fields

Enabling this restriction prevents users from adding or changing comments and creating form fields.



Enable content access for the visually impaired

Enabling this setting allows the visually impaired to read or hear the content of PDF files using Braille terminals or voice output devices.






Trap unhandled dialogs



In some conversions unhandled dialog windows may appear, mostly when a file is converted directly from internet, a 'enter network password' dialog may appear. JobMasters dialog handler will trap these dialogs. This option is only recommended for unattended operation.



Convert to semicolons instead of commas in CSV



Use semicolon instead of commas when converting to CSV file.



Refresh chart objects in document



When converting files which contain chart objects, the converted layout may differ. This option refreshes the chart objects used before the conversion process begins. When using this option screen flickering may occur.








Conversion Watchdog



To convert files into different formats, JobMaster uses Microsoft Office applications such as Word, Excel or PowerPoint. Highest stability and reliability can be guaranteed by activating the internal monitoring system Watchdog. Watchdog monitors the current conversion in an independent thread and will close the corresponding Office application in case that the application is hanging. This option is especially recommended when using JobMaster in unattended operation.



In the monitoring limit 'terminate process after', you can set the timeout for the Office application to convert a single file. Choose a value between 3 - 30 minutes. In case that the conversion process lasts longer than the defined time, JobMaster will ask the Office application to finish all pending operations and to close itself. If the Office application does not respond to this request, watchdog will take over and terminate the Office application process. There will be an appropriate entry in the log file.



If you plan to convert larger documents, or you are not sure about the document size, it is recommended to set a value of at least 10 minutes.





exclamation2



exclamation2ONLY USE WATCHDOG FOR UNATTENDED OPERATION. DO NOT USE IT WHEN WORKING WITH MSOFFICE APPLICATIONS WHILE JOBMASTER IS RUNNING. YOU CAN LOOSE ANY UNSAVED DATA if WATCHDOG CLOSES AN MSOFFICE APPLICATION WHILE YOU ARE WORKING WITH IT.


 Force Mode



The Force Mode option provides additional stability for conversions, because it checks if the Office application, which is needed for a conversion, is already running. Before the conversion process begins, Force Mode will close the Office application process that is used for the conversion. If you are working in MSOffice when the conversion process begins, you can loose any unsaved data when MSOffice is not responding to the close request.







exclamation2exclamation2ONLY USE WATCHDOG FOR UNATTENDED OPERATION on systems especially designed for conversions, for example in a server environment.  Never use this SETTING during a user is working with msoffice applications on the same system.








General Settings



Automatically start JobMaster



This option makes sure that JobMaster automatically starts after a system restart and is especially recommended for unattended operation in a server environment.



Minimize JobMaster at startup



The JobMaster console will be minimized after a restart of JobMaster. That means that the program is running in the background and can be activated by clicking the JobMaster icon jm1616 in the taskbar.



Main window always on top



You can use this option to always keep the main window displayed on the screen when you switch programs or windows.




Technical Information

Command Line Options



Usage:



JobMaster.exe [Action|Option switches] [Source type|Job name] ["Source file or directory"] ["Destination directory"] [Conversion]



Action:



R        Run an existing job.

C        Convert file or directory content.

P        Copy file or directory content.

M       Move file or directory content.

D       Delete file or directory content.

E        Execute file or internet resource.



Option switches



X        Do not overwrite existing file(s).

Y        Overwrite only when source file is newer (overrides X switch).

S        Recursive mode (include subdirectories).

I        Process hidden file(s).

Q       Quit JobMaster after processing command line.

H       Show help dialog.



Source type|Job name



<Job name> Name of job to start for use with action switch R.

FILE             Indicates a single file for copy, move, convert, delete or execute action.

DIR              Indicates a directory for copy, move, convert or delete action.

URL             Indicates internet resource for copy, convert or execute action.



"Source file or directory"



Specifies the source file or directory. Must be a full qualified path and enclosed in double quotes <"directory">.

Example: "C:\My Data\Documents"



"Destination directory"



Specifies the destination directory. Must be a full qualified path and enclosed in double quotes <"directory">.

Example: "C:\wwwroot\web docs"



Conversion



Specifies the source and target format for use with action switch C. See tables below for desired conversion codes.




Code

Source format

Target format

txt2pdf

ASCII Text File (.txt)

Adobe Acrobat Format (.pdf)

txt2htm

ASCII Text File (.txt)

Web Page (.htm; .html)

txt2doc

ASCII Text File (.txt)

Word Document Format (.doc)

txt2rtf

ASCII Text File (.txt)

Rich Text Format File (.rtf)

txt2dot

ASCII Text File (.txt)

Word Template (.dot)

txt2ans

ASCII Text File (.txt)

Text with Layout Format (.ans)

txt2wpt

ASCII Text File (.txt)

WordPerfect 5.0 File (.doc)

txt2mht

ASCII Text File (.txt)

WebArchive File (.mht; .mhtml)

txt2wps

ASCII Text File (.txt)

Works 4.0 File (.wps)

txt2xml

ASCII Text File (.txt)

XML File Format (.xml)

txt2htf

ASCII Text File (.txt)

Web Page, filtered (.htm)

txt2csv

ASCII Text File (.txt)

Comma Separated Values File (.csv)

txt2dif

ASCII Text File (.txt)

Data Interchange Format File (.dif)

txt2xl2

ASCII Text File (.txt)

Excel 2.1 (.xls)

txt2xl3

ASCII Text File (.txt)

Excel 3.0 (.xls)

txt2xl4

ASCII Text File (.txt)

Excel 4.0 (.xls)

txt2xl5

ASCII Text File (.txt)

Excel 5.0 / 95 (.xls)

txt2xls

ASCII Text File (.txt)

Excel 97-02 & 5.0/95 (.xls)

txt2db2

ASCII Text File (.txt)

dBASE II (.dbf)

txt2db3

ASCII Text File (.txt)

dBASE III (.dbf)

txt2db4

ASCII Text File (.txt)

dBASE IV (.dbf)

txt2wks

ASCII Text File (.txt)

Works 2.0 File / Lotus Worksheet (.wks)

txt2xlt

ASCII Text File (.txt)

Excel Template (.xlt)

txt2slk

ASCII Text File (.txt)

Symbolic Link Format File (.slk)

txt2bmp

ASCII Text File (.txt)

Windows Bitmap (.bmp)

txt2gif

ASCII Text File (.txt)

GIF Format (.gif)

txt2jpg

ASCII Text File (.txt)

JPG Format (.jpg)

txt2png

ASCII Text File (.txt)

PNG Format (.png)

txt2htd

ASCII Text File (.txt)

Web Page, dual (.htm; .html)

txt2ht3

ASCII Text File (.txt)

Web Page, V3 (.htm; .html)

txt2ppt

ASCII Text File (.txt)

PowerPoint Presentation Format (.ppt)

txt2pp7

ASCII Text File (.txt)

Powerpoint 7 (.ppt)

txt2pot

ASCII Text File (.txt)

Powerpoint Template (.pot)

txt2pps

ASCII Text File (.txt)

PowerPoint SlideShow File (.pps)

txt2tif

ASCII Text File (.txt)

TIF Format (.tif)

csv2pdf

Comma Separated Values File (.csv)

Adobe Acrobat Format (.pdf)

csv2htm

Comma Separated Values File (.csv)

Web Page (.htm; .html)

csv2txt

Comma Separated Values File (.csv)

ASCII Text File (.txt)

csv2xml

Comma Separated Values File (.csv)

XML File Format (.xml)

csv2dif

Comma Separated Values File (.csv)

Data Interchange Format File (.dif)

csv2xl2

Comma Separated Values File (.csv)

Excel 2.1 (.xls)

csv2xl3

Comma Separated Values File (.csv)

Excel 3.0 (.xls)

csv2xl4

Comma Separated Values File (.csv)

Excel 4.0 (.xls)

csv2xl5

Comma Separated Values File (.csv)

Excel 5.0 / 95 (.xls)

csv2xls

Comma Separated Values File (.csv)

Excel 97-02 & 5.0/95 (.xls)

csv2db2

Comma Separated Values File (.csv)

dBASE II (.dbf)

csv2db3

Comma Separated Values File (.csv)

dBASE III (.dbf)

csv2db4

Comma Separated Values File (.csv)

dBASE IV (.dbf)

csv2wks

Comma Separated Values File (.csv)

Works 2.0 File / Lotus Worksheet (.wks)

csv2xlt

Comma Separated Values File (.csv)

Excel Template (.xlt)

csv2mht

Comma Separated Values File (.csv)

WebArchive File (.mht; .mhtml)

csv2slk

Comma Separated Values File (.csv)

Symbolic Link Format File (.slk)

dif2pdf

Data Interchange Format File (.dif)

Adobe Acrobat Format (.pdf)

dif2htm

Data Interchange Format File (.dif)

Web Page (.htm; .html)

dif2txt

Data Interchange Format File (.dif)

ASCII Text File (.txt)

dif2xml

Data Interchange Format File (.dif)

XML File Format (.xml)

dif2csv

Data Interchange Format File (.dif)

Comma Separated Values File (.csv)

dif2xl2

Data Interchange Format File (.dif)

Excel 2.1 (.xls)

dif2xl3

Data Interchange Format File (.dif)

Excel 3.0 (.xls)

dif2xl4

Data Interchange Format File (.dif)

Excel 4.0 (.xls)

dif2xl5

Data Interchange Format File (.dif)

Excel 5.0 / 95 (.xls)

dif2xls

Data Interchange Format File (.dif)

Excel 97-02 & 5.0/95 (.xls)

Code

Source format

Target format

dif2db2

Data Interchange Format File (.dif)

dBASE II (.dbf)

dif2db3

Data Interchange Format File (.dif)

dBASE III (.dbf)

dif2db4

Data Interchange Format File (.dif)

dBASE IV (.dbf)

dif2wks

Data Interchange Format File (.dif)

Works 2.0 File / Lotus Worksheet (.wks)

dif2xlt

Data Interchange Format File (.dif)

Excel Template (.xlt)

dif2mht

Data Interchange Format File (.dif)

WebArchive File (.mht; .mhtml)

dif2slk

Data Interchange Format File (.dif)

Symbolic Link Format File (.slk)

dbf2pdf

dBASE File (.dbf)

Adobe Acrobat Format (.pdf)

dbf2htm

dBASE File (.dbf)

Web Page (.htm; .html)

dbf2txt

dBASE File (.dbf)

ASCII Text File (.txt)

dbf2xml

dBASE File (.dbf)

XML File Format (.xml)

dbf2csv

dBASE File (.dbf)

Comma Separated Values File (.csv)

dbf2dif

dBASE File (.dbf)

Data Interchange Format File (.dif)

dbf2xl2

dBASE File (.dbf)

Excel 2.1 (.xls)

dbf2xl3

dBASE File (.dbf)

Excel 3.0 (.xls)

dbf2xl4

dBASE File (.dbf)

Excel 4.0 (.xls)

dbf2xl5

dBASE File (.dbf)

Excel 5.0 / 95 (.xls)

dbf2xls

dBASE File (.dbf)

Excel 97-02 & 5.0/95 (.xls)

dbf2db2

dBASE File (.dbf)

dBASE II (.dbf)

dbf2db3

dBASE File (.dbf)

dBASE III (.dbf)

dbf2db4

dBASE File (.dbf)

dBASE IV (.dbf)

dbf2wks

dBASE File (.dbf)

Works 2.0 File / Lotus Worksheet (.wks)

dbf2xlt

dBASE File (.dbf)

Excel Template (.xlt)

dbf2mht

dBASE File (.dbf)

WebArchive File (.mht; .mhtml)

dbf2slk

dBASE File (.dbf)

Symbolic Link Format File (.slk)

xla2pdf

Excel 4.0 Macro File (.xlm;.xla)

Adobe Acrobat Format (.pdf)

xla2htm

Excel 4.0 Macro File (.xlm;.xla)

Web Page (.htm; .html)

xla2txt

Excel 4.0 Macro File (.xlm;.xla)

ASCII Text File (.txt)

xla2xml

Excel 4.0 Macro File (.xlm;.xla)

XML File Format (.xml)

xla2csv

Excel 4.0 Macro File (.xlm;.xla)

Comma Separated Values File (.csv)

xla2dif

Excel 4.0 Macro File (.xlm;.xla)

Data Interchange Format File (.dif)

xla2xl2

Excel 4.0 Macro File (.xlm;.xla)

Excel 2.1 (.xls)

xla2xl3

Excel 4.0 Macro File (.xlm;.xla)

Excel 3.0 (.xls)

xla2xl4

Excel 4.0 Macro File (.xlm;.xla)

Excel 4.0 (.xls)

xla2xl5

Excel 4.0 Macro File (.xlm;.xla)

Excel 5.0 / 95 (.xls)

xla2xls

Excel 4.0 Macro File (.xlm;.xla)

Excel 97-02 & 5.0/95 (.xls)

xla2db2

Excel 4.0 Macro File (.xlm;.xla)

dBASE II (.dbf)

xla2db3

Excel 4.0 Macro File (.xlm;.xla)

dBASE III (.dbf)

xla2db4

Excel 4.0 Macro File (.xlm;.xla)

dBASE IV (.dbf)

xla2wks

Excel 4.0 Macro File (.xlm;.xla)

Works 2.0 File / Lotus Worksheet (.wks)

xla2xlt

Excel 4.0 Macro File (.xlm;.xla)

Excel Template (.xlt)

xla2mht

Excel 4.0 Macro File (.xlm;.xla)

WebArchive File (.mht; .mhtml)

xla2slk

Excel 4.0 Macro File (.xlm;.xla)

Symbolic Link Format File (.slk)

xls2pdf

Excel File Format (.xls)

Adobe Acrobat Format (.pdf)

xls2htm

Excel File Format (.xls)

Web Page (.htm; .html)

xls2txt

Excel File Format (.xls)

ASCII Text File (.txt)

xls2xml

Excel File Format (.xls)

XML File Format (.xml)

xls2csv

Excel File Format (.xls)

Comma Separated Values File (.csv)

xls2dif

Excel File Format (.xls)

Data Interchange Format File (.dif)

xls2xl2

Excel File Format (.xls)

Excel 2.1 (.xls)

xls2xl3

Excel File Format (.xls)

Excel 3.0 (.xls)

xls2xl4

Excel File Format (.xls)

Excel 4.0 (.xls)

xls2xl5

Excel File Format (.xls)

Excel 5.0 / 95 (.xls)

xls2db2

Excel File Format (.xls)

dBASE II (.dbf)

xls2db3

Excel File Format (.xls)

dBASE III (.dbf)

xls2db4

Excel File Format (.xls)

dBASE IV (.dbf)

xls2wks

Excel File Format (.xls)

Works 2.0 File / Lotus Worksheet (.wks)

xls2xlt

Excel File Format (.xls)

Excel Template (.xlt)

xls2mht

Excel File Format (.xls)

WebArchive File (.mht; .mhtml)

xls2slk

Excel File Format (.xls)

Symbolic Link Format File (.slk)

xlt2pdf

Excel Template (.xlt)

Adobe Acrobat Format (.pdf)

xlt2htm

Excel Template (.xlt)

Web Page (.htm; .html)

xlt2txt

Excel Template (.xlt)

ASCII Text File (.txt)

Code

Source format

Target format

xlt2xml

Excel Template (.xlt)

XML File Format (.xml)

xlt2csv

Excel Template (.xlt)

Comma Separated Values File (.csv)

xlt2dif

Excel Template (.xlt)

Data Interchange Format File (.dif)

xlt2xl2

Excel Template (.xlt)

Excel 2.1 (.xls)

xlt2xl3

Excel Template (.xlt)

Excel 3.0 (.xls)

xlt2xl4

Excel Template (.xlt)

Excel 4.0 (.xls)

xlt2xl5

Excel Template (.xlt)

Excel 5.0 / 95 (.xls)

xlt2xls

Excel Template (.xlt)

Excel 97-02 & 5.0/95 (.xls)

xlt2db2

Excel Template (.xlt)

dBASE II (.dbf)

xlt2db3

Excel Template (.xlt)

dBASE III (.dbf)

xlt2db4

Excel Template (.xlt)

dBASE IV (.dbf)

xlt2wks

Excel Template (.xlt)

Works 2.0 File / Lotus Worksheet (.wks)

xlt2mht

Excel Template (.xlt)

WebArchive File (.mht; .mhtml)

xlt2slk

Excel Template (.xlt)

Symbolic Link Format File (.slk)

prn2pdf

Excel Text File (.prn)

Adobe Acrobat Format (.pdf)

prn2htm

Excel Text File (.prn)

Web Page (.htm; .html)

prn2txt

Excel Text File (.prn)

ASCII Text File (.txt)

prn2xml

Excel Text File (.prn)

XML File Format (.xml)

prn2csv

Excel Text File (.prn)

Comma Separated Values File (.csv)

prn2dif

Excel Text File (.prn)

Data Interchange Format File (.dif)

prn2xl2

Excel Text File (.prn)

Excel 2.1 (.xls)

prn2xl3

Excel Text File (.prn)

Excel 3.0 (.xls)

prn2xl4

Excel Text File (.prn)

Excel 4.0 (.xls)

prn2xl5

Excel Text File (.prn)

Excel 5.0 / 95 (.xls)

prn2xls

Excel Text File (.prn)

Excel 97-02 & 5.0/95 (.xls)

prn2db2

Excel Text File (.prn)

dBASE II (.dbf)

prn2db3

Excel Text File (.prn)

dBASE III (.dbf)

prn2db4

Excel Text File (.prn)

dBASE IV (.dbf)

prn2wks

Excel Text File (.prn)

Works 2.0 File / Lotus Worksheet (.wks)

prn2xlt

Excel Text File (.prn)

Excel Template (.xlt)

prn2mht

Excel Text File (.prn)

WebArchive File (.mht; .mhtml)

prn2slk

Excel Text File (.prn)

Symbolic Link Format File (.slk)

xlw2pdf

Excel Workbook File (.xlw)

Adobe Acrobat Format (.pdf)

xlw2htm

Excel Workbook File (.xlw)

Web Page (.htm; .html)

xlw2txt

Excel Workbook File (.xlw)

ASCII Text File (.txt)

xlw2xml

Excel Workbook File (.xlw)

XML File Format (.xml)

xlw2csv

Excel Workbook File (.xlw)

Comma Separated Values File (.csv)

xlw2dif

Excel Workbook File (.xlw)

Data Interchange Format File (.dif)

xlw2xl2

Excel Workbook File (.xlw)

Excel 2.1 (.xls)

xlw2xl3

Excel Workbook File (.xlw)

Excel 3.0 (.xls)

xlw2xl4

Excel Workbook File (.xlw)

Excel 4.0 (.xls)

xlw2xl5

Excel Workbook File (.xlw)

Excel 5.0 / 95 (.xls)

xlw2xls

Excel Workbook File (.xlw)

Excel 97-02 & 5.0/95 (.xls)

xlw2db2

Excel Workbook File (.xlw)

dBASE II (.dbf)

xlw2db3

Excel Workbook File (.xlw)

dBASE III (.dbf)

xlw2db4

Excel Workbook File (.xlw)

dBASE IV (.dbf)

xlw2wks

Excel Workbook File (.xlw)

Works 2.0 File / Lotus Worksheet (.wks)

xlw2xlt

Excel Workbook File (.xlw)

Excel Template (.xlt)

xlw2mht

Excel Workbook File (.xlw)

WebArchive File (.mht; .mhtml)

xlw2slk

Excel Workbook File (.xlw)

Symbolic Link Format File (.slk)

pre2pdf

Freelance 1.0 - 2.1 Files (.pre)

Adobe Acrobat Format (.pdf)

pre2bmp

Freelance 1.0 - 2.1 Files (.pre)

Windows Bitmap (.bmp)

pre2gif

Freelance 1.0 - 2.1 Files (.pre)

GIF Format (.gif)

pre2jpg

Freelance 1.0 - 2.1 Files (.pre)

JPG Format (.jpg)

pre2png

Freelance 1.0 - 2.1 Files (.pre)

PNG Format (.png)

pre2htm

Freelance 1.0 - 2.1 Files (.pre)

Web Page (.htm; .html)

pre2htd

Freelance 1.0 - 2.1 Files (.pre)

Web Page, dual (.htm; .html)

pre2ht3

Freelance 1.0 - 2.1 Files (.pre)

Web Page, V3 (.htm; .html)

pre2ppt

Freelance 1.0 - 2.1 Files (.pre)

PowerPoint Presentation Format (.ppt)

pre2pp7

Freelance 1.0 - 2.1 Files (.pre)

Powerpoint 7 (.ppt)

pre2xls

Freelance 1.0 - 2.1 Files (.pre)

Excel 97-02 & 5.0/95 (.xls)

pre2rtf

Freelance 1.0 - 2.1 Files (.pre)

Rich Text Format File (.rtf)

pre2pot

Freelance 1.0 - 2.1 Files (.pre)

PowerPoint Template (.pot)

Code

Source format

Target format

pre2mht

Freelance 1.0 - 2.1 Files (.pre)

WebArchive File (.mht; .mhtml)

pre2pps

Freelance 1.0 - 2.1 Files (.pre)

PowerPoint SlideShow File (.pps)

pre2tif

Freelance 1.0 - 2.1 Files (.pre)

TIF Format(.tif)

ch32pdf

Harvard Graphics Chart File (.ch3)

Adobe Acrobat Format (.pdf)

ch32bmp

Harvard Graphics Chart File (.ch3)

Windows Bitmap (.bmp)

ch32gif

Harvard Graphics Chart File (.ch3)

GIF Format (.gif)

ch32jpg

Harvard Graphics Chart File (.ch3)

JPG Format (.jpg)

ch32png

Harvard Graphics Chart File (.ch3)

PNG Format (.png)

ch32htm

Harvard Graphics Chart File (.ch3)

Web Page (.htm; .html)

ch32htd

Harvard Graphics Chart File (.ch3)

Web Page, dual (.htm; .html)

ch32ht3

Harvard Graphics Chart File (.ch3)

Web Page, V3 (.htm; .html)

ch32ppt

Harvard Graphics Chart File (.ch3)

PowerPoint Presentation Format (.ppt)

ch32pp7

Harvard Graphics Chart File (.ch3)

Powerpoint 7 (.ppt)

ch32xls

Harvard Graphics Chart File (.ch3)

Excel 97-02 & 5.0/95 (.xls)

ch32rtf

Harvard Graphics Chart File (.ch3)

Rich Text Format File (.rtf)

ch32pot

Harvard Graphics Chart File (.ch3)

PowerPoint Template (.pot)

ch32mht

Harvard Graphics Chart File (.ch3)

WebArchive File (.mht; .mhtml)

ch32pps

Harvard Graphics Chart File (.ch3)

PowerPoint SlideShow File (.pps)

ch32tif

Harvard Graphics Chart File (.ch3)

TIF Format(.tif)

sh32pdf

Harvard Graphics Show File (.sh3)

Adobe Acrobat Format (.pdf)

sh32bmp

Harvard Graphics Show File (.sh3)

Windows Bitmap (.bmp)

sh32gif

Harvard Graphics Show File (.sh3)

GIF Format (.gif)

sh32jpg

Harvard Graphics Show File (.sh3)

JPG Format (.jpg)

sh32png

Harvard Graphics Show File (.sh3)

PNG Format (.png)

sh32htm

Harvard Graphics Show File (.sh3)

Web Page (.htm; .html)

sh32htd

Harvard Graphics Show File (.sh3)

Web Page, dual (.htm; .html)

sh32ht3

Harvard Graphics Show File (.sh3)

Web Page, V3 (.htm; .html)

sh32ppt

Harvard Graphics Show File (.sh3)

PowerPoint Presentation Format (.ppt)

sh32pp7

Harvard Graphics Show File (.sh3)

Powerpoint 7 (.ppt)

sh32xls

Harvard Graphics Show File (.sh3)

Excel 97-02 & 5.0/95 (.xls)

sh32rtf

Harvard Graphics Show File (.sh3)

Rich Text Format File (.rtf)

sh32pot

Harvard Graphics Show File (.sh3)

PowerPoint Template (.pot)

sh32mht

Harvard Graphics Show File (.sh3)

WebArchive File (.mht; .mhtml)

sh32pps

Harvard Graphics Show File (.sh3)

PowerPoint SlideShow File (.pps)

sh32tif

Harvard Graphics Show File (.sh3)

TIF Format(.tif)

wk*2pdf

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

Adobe Acrobat Format (.pdf)

wk*2htm

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

Web Page (.htm; .html)

wk*2txt

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

ASCII Text File (.txt)

wk*2xml

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

XML File Format (.xml)

wk*2csv

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

Comma Separated Values File (.csv)

wk*2dif

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

Data Interchange Format File (.dif)

wk*2xl2

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

Excel 2.1 (.xls)

wk*2xl3

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

Excel 3.0 (.xls)

wk*2xl4

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

Excel 4.0 (.xls)

wk*2xl5

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

Excel 5.0 / 95 (.xls)

wk*2xls

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

Excel 97-02 & 5.0/95 (.xls)

wk*2db2

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

dBASE II (.dbf)

wk*2db3

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

dBASE III (.dbf)

wk*2db4

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

dBASE IV (.dbf)

wk*2wks

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

Works 2.0 File / Lotus Worksheet (.wks)

wk*2xlt

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

Excel Template (.xlt)

wk*2mht

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

WebArchive File (.mht; .mhtml)

wk*2slk

Lotus 1-2-3 File (.wk1;.wk3;.wk4)

Symbolic Link Format File (.slk)

olk2pdf

Outlook Address Book File (.olk)

Adobe Acrobat Format (.pdf)

olk2htm

Outlook Address Book File (.olk)

Web Page (.htm; .html)

olk2txt

Outlook Address Book File (.olk)

ASCII Text File (.txt)

olk2doc

Outlook Address Book File (.olk)

Word Document Format (.doc)

olk2rtf

Outlook Address Book File (.olk)

Rich Text Format File (.rtf)

olk2dot

Outlook Address Book File (.olk)

Word Template (.dot)

olk2ans

Outlook Address Book File (.olk)

Text with Layout Format (.ans)

olk2wpt

Outlook Address Book File (.olk)

WordPerfect 5.0 File (.doc)

olk2mht

Outlook Address Book File (.olk)

WebArchive File (.mht; .mhtml)

olk2wps

Outlook Address Book File (.olk)

Works 4.0 File (.wps)

Code

Source format

Target format

olk2xml

Outlook Address Book File (.olk)

XML File Format (.xml)

olk2htf

Outlook Address Book File (.olk)

Web Page, filtered (.htm)

pab2pdf

Personal Address Book File (.pab)

Adobe Acrobat Format (.pdf)

pab2htm

Personal Address Book File (.pab)

Web Page (.htm; .html)

pab2txt

Personal Address Book File (.pab)

ASCII Text File (.txt)

pab2doc

Personal Address Book File (.pab)

Word Document Format (.doc)

pab2rtf

Personal Address Book File (.pab)

Rich Text Format File (.rtf)

pab2dot

Personal Address Book File (.pab)

Word Template (.dot)

pab2ans

Personal Address Book File (.pab)

Text with Layout Format (.ans)

pab2wpt

Personal Address Book File (.pab)

WordPerfect 5.0 File (.doc)

pab2mht

Personal Address Book File (.pab)

WebArchive File (.mht; .mhtml)

pab2wps

Personal Address Book File (.pab)

Works 4.0 File (.wps)

pab2xml

Personal Address Book File (.pab)

XML File Format (.xml)

pab2htf

Personal Address Book File (.pab)

Web Page, filtered (.htm)

ppt2pdf

PowerPoint Presentation Format (.ppt)

Adobe Acrobat Format (.pdf)

ppt2bmp

PowerPoint Presentation Format (.ppt)

Windows Bitmap (.bmp)

ppt2gif

PowerPoint Presentation Format (.ppt)

GIF Format (.gif)

ppt2jpg

PowerPoint Presentation Format (.ppt)

JPG Format (.jpg)

ppt2png

PowerPoint Presentation Format (.ppt)

PNG Format (.png)

ppt2htm

PowerPoint Presentation Format (.ppt)

Web Page (.htm; .html)

ppt2htd

PowerPoint Presentation Format (.ppt)

Web Page, dual (.htm; .html)

ppt2ht3

PowerPoint Presentation Format (.ppt)

Web Page, V3 (.htm; .html)

ppt2pp7

PowerPoint Presentation Format (.ppt)

Powerpoint 7 (.ppt)

ppt2xls

PowerPoint Presentation Format (.ppt)

Excel 97-02 & 5.0/95 (.xls)

ppt2rtf

PowerPoint Presentation Format (.ppt)

Rich Text Format File (.rtf)

ppt2pot

PowerPoint Presentation Format (.ppt)

PowerPoint Template (.pot)

ppt2mht

PowerPoint Presentation Format (.ppt)

WebArchive File (.mht; .mhtml)

ppt2pps

PowerPoint Presentation Format (.ppt)

PowerPoint SlideShow File (.pps)

ppt2tif

PowerPoint Presentation Format (.ppt)

TIF Format(.tif)

pps2pdf

PowerPoint SlideShow File (.pps)

Adobe Acrobat Format (.pdf)

pps2bmp

PowerPoint SlideShow File (.pps)

Windows Bitmap (.bmp)

pps2gif

PowerPoint SlideShow File (.pps)

GIF Format (.gif)

pps2jpg

PowerPoint SlideShow File (.pps)

JPG Format (.jpg)

pps2png

PowerPoint SlideShow File (.pps)

PNG Format (.png)

pps2htm

PowerPoint SlideShow File (.pps)

Web Page (.htm; .html)

pps2htd

PowerPoint SlideShow File (.pps)

Web Page, dual (.htm; .html)

pps2ht3

PowerPoint SlideShow File (.pps)

Web Page, V3 (.htm; .html)

pps2ppt

PowerPoint SlideShow File (.pps)

PowerPoint Presentation Format (.ppt)

pps2pp7

PowerPoint SlideShow File (.pps)

Powerpoint 7 (.ppt)

pps2xls

PowerPoint SlideShow File (.pps)

Excel 97-02 & 5.0/95 (.xls)

pps2rtf

PowerPoint SlideShow File (.pps)

Rich Text Format File (.rtf)

pps2pot

PowerPoint SlideShow File (.pps)

PowerPoint Template (.pot)

pps2mht

PowerPoint SlideShow File (.pps)

WebArchive File (.mht; .mhtml)

pps2tif

PowerPoint SlideShow File (.pps)

TIF Format(.tif)

pot2pdf

PowerPoint Template (.pot)

Adobe Acrobat Format (.pdf)

pot2bmp

PowerPoint Template (.pot)

Windows Bitmap (.bmp)

pot2gif

PowerPoint Template (.pot)

GIF Format (.gif)

pot2jpg

PowerPoint Template (.pot)

JPG Format (.jpg)

pot2png

PowerPoint Template (.pot)

PNG Format (.png)

pot2htm

PowerPoint Template (.pot)

Web Page (.htm; .html)

pot2htd

PowerPoint Template (.pot)

Web Page, dual (.htm; .html)

pot2ht3

PowerPoint Template (.pot)

Web Page, V3 (.htm; .html)

pot2ppt

PowerPoint Template (.pot)

PowerPoint Presentation Format (.ppt)

pot2pp7

PowerPoint Template (.pot)

Powerpoint 7 (.ppt)

pot2xls

PowerPoint Template (.pot)

Excel 97-02 & 5.0/95 (.xls)

pot2rtf

PowerPoint Template (.pot)

Rich Text Format File (.rtf)

pot2mht

PowerPoint Template (.pot)

WebArchive File (.mht; .mhtml)

pot2pps

PowerPoint Template (.pot)

PowerPoint SlideShow File (.pps)

pot2tif

PowerPoint Template (.pot)

TIF Format(.tif)

wb12pdf

Quattro Pro/DOS File (.wq1;.wb1)

Adobe Acrobat Format (.pdf)

wb12htm

Quattro Pro/DOS File (.wq1;.wb1)

Web Page (.htm; .html)

wb12txt

Quattro Pro/DOS File (.wq1;.wb1)

ASCII Text File (.txt)

wb12xml

Quattro Pro/DOS File (.wq1;.wb1)

XML File Format (.xml)

Code

Source format

Target format

wb12csv

Quattro Pro/DOS File (.wq1;.wb1)

Comma Separated Values File (.csv)

wb12dif

Quattro Pro/DOS File (.wq1;.wb1)

Data Interchange Format File (.dif)

wb12xl2

Quattro Pro/DOS File (.wq1;.wb1)

Excel 2.1 (.xls)

wb12xl3

Quattro Pro/DOS File (.wq1;.wb1)

Excel 3.0 (.xls)

wb12xl4

Quattro Pro/DOS File (.wq1;.wb1)

Excel 4.0 (.xls)

wb12xl5

Quattro Pro/DOS File (.wq1;.wb1)

Excel 5.0 / 95 (.xls)

wb12xls

Quattro Pro/DOS File (.wq1;.wb1)

Excel 97-02 & 5.0/95 (.xls)

wb12db2

Quattro Pro/DOS File (.wq1;.wb1)

dBASE II (.dbf)

wb12db3

Quattro Pro/DOS File (.wq1;.wb1)

dBASE III (.dbf)

wb12db4

Quattro Pro/DOS File (.wq1;.wb1)

dBASE IV (.dbf)

wb12wks

Quattro Pro/DOS File (.wq1;.wb1)

Works 2.0 File / Lotus Worksheet (.wks)

wb12xlt

Quattro Pro/DOS File (.wq1;.wb1)

Excel Template (.xlt)

wb12mht

Quattro Pro/DOS File (.wq1;.wb1)

WebArchive File (.mht; .mhtml)

wb12slk

Quattro Pro/DOS File (.wq1;.wb1)

Symbolic Link Format File (.slk)

iqy2pdf

Query File Format (.iqy)

Adobe Acrobat Format (.pdf)

iqy2htm

Query File Format (.iqy)

Web Page (.htm; .html)

iqy2txt

Query File Format (.iqy)

ASCII Text File (.txt)

iqy2xml

Query File Format (.iqy)

XML File Format (.xml)

iqy2csv

Query File Format (.iqy)

Comma Separated Values File (.csv)

iqy2dif

Query File Format (.iqy)

Data Interchange Format File (.dif)

iqy2xl2

Query File Format (.iqy)

Excel 2.1 (.xls)

iqy2xl3

Query File Format (.iqy)

Excel 3.0 (.xls)

iqy2xl4

Query File Format (.iqy)

Excel 4.0 (.xls)

iqy2xl5

Query File Format (.iqy)

Excel 5.0 / 95 (.xls)

iqy2xls

Query File Format (.iqy)

Excel 97-02 & 5.0/95 (.xls)

iqy2db2

Query File Format (.iqy)

dBASE II (.dbf)

iqy2db3

Query File Format (.iqy)

dBASE III (.dbf)

iqy2db4

Query File Format (.iqy)

dBASE IV (.dbf)

iqy2wks

Query File Format (.iqy)

Works 2.0 File / Lotus Worksheet (.wks)

iqy2xlt

Query File Format (.iqy)

Excel Template (.xlt)

iqy2mht

Query File Format (.iqy)

WebArchive File (.mht; .mhtml)

iqy2slk

Query File Format (.iqy)

Symbolic Link Format File (.slk)

rtf2pdf

Rich Text Format File (.rtf)

Adobe Acrobat Format (.pdf)

rtf2htm

Rich Text Format File (.rtf)

Web Page (.htm; .html)

rtf2txt

Rich Text Format File (.rtf)

ASCII Text File (.txt)

rtf2doc

Rich Text Format File (.rtf)

Word Document Format (.doc)

rtf2dot

Rich Text Format File (.rtf)

Word Template (.dot)

rtf2ans

Rich Text Format File (.rtf)

Text with Layout Format (.ans)

rtf2wpt

Rich Text Format File (.rtf)

WordPerfect 5.0 File (.doc)

rtf2mht

Rich Text Format File (.rtf)

WebArchive File (.mht; .mhtml)

rtf2wps

Rich Text Format File (.rtf)

Works 4.0 File (.wps)

rtf2xml

Rich Text Format File (.rtf)

XML File Format (.xml)

rtf2htf

Rich Text Format File (.rtf)

Web Page, filtered (.htm)

rtf2bmp

Rich Text Format File (.rtf)

Windows Bitmap (.bmp)

rtf2gif

Rich Text Format File (.rtf)

GIF Format (.gif)

rtf2jpg

Rich Text Format File (.rtf)

JPG Format (.jpg)

rtf2png

Rich Text Format File (.rtf)

PNG Format (.png)

rtf2htd

Rich Text Format File (.rtf)

Web Page, dual (.htm; .html)

rtf2ht3

Rich Text Format File (.rtf)

Web Page, V3 (.htm; .html)

rtf2ppt

Rich Text Format File (.rtf)

PowerPoint Presentation Format (.ppt)

rtf2pp7

Rich Text Format File (.rtf)

Powerpoint 7 (.ppt)

rtf2pot

Rich Text Format File (.rtf)

Powerpoint Template (.pot)

rtf2pps

Rich Text Format File (.rtf)

PowerPoint SlideShow File (.pps)

rtf2tif

Rich Text Format File (.rtf)

TIF Format (.tif)

rpw2pdf

SAP Report Writer File (.rpw)

Adobe Acrobat Format (.pdf)

rpw2htm

SAP Report Writer File (.rpw)

Web Page (.htm; .html)

rpw2txt

SAP Report Writer File (.rpw)

ASCII Text File (.txt)

rpw2xml

SAP Report Writer File (.rpw)

XML File Format (.xml)

rpw2csv

SAP Report Writer File (.rpw)

Comma Separated Values File (.csv)

rpw2dif

SAP Report Writer File (.rpw)

Data Interchange Format File (.dif)

rpw2xl2

SAP Report Writer File (.rpw)

Excel 2.1 (.xls)

rpw2xl3

SAP Report Writer File (.rpw)

Excel 3.0 (.xls)

rpw2xl4

SAP Report Writer File (.rpw)

Excel 4.0 (.xls)

Code

Source format

Target format

rpw2xl5

SAP Report Writer File (.rpw)

Excel 5.0 / 95 (.xls)

rpw2xls

SAP Report Writer File (.rpw)

Excel 97-02 & 5.0/95 (.xls)

rpw2db2

SAP Report Writer File (.rpw)

dBASE II (.dbf)

rpw2db3

SAP Report Writer File (.rpw)

dBASE III (.dbf)

rpw2db4

SAP Report Writer File (.rpw)

dBASE IV (.dbf)

rpw2wks

SAP Report Writer File (.rpw)

Works 2.0 File / Lotus Worksheet (.wks)

rpw2xlt

SAP Report Writer File (.rpw)

Excel Template (.xlt)

rpw2mht

SAP Report Writer File (.rpw)

WebArchive File (.mht; .mhtml)

rpw2slk

SAP Report Writer File (.rpw)

Symbolic Link Format File (.slk)

scd2pdf

Schedule+ Contacts File (.scd)

Adobe Acrobat Format (.pdf)

scd2htm

Schedule+ Contacts File (.scd)

Web Page (.htm; .html)

scd2txt

Schedule+ Contacts File (.scd)

ASCII Text File (.txt)

scd2doc

Schedule+ Contacts File (.scd)

Word Document Format (.doc)

scd2rtf

Schedule+ Contacts File (.scd)

Rich Text Format File (.rtf)

scd2dot

Schedule+ Contacts File (.scd)

Word Template (.dot)

scd2ans

Schedule+ Contacts File (.scd)

Text with Layout Format (.ans)

scd2wpt

Schedule+ Contacts File (.scd)

WordPerfect 5.0 File (.doc)

scd2mht

Schedule+ Contacts File (.scd)

WebArchive File (.mht; .mhtml)

scd2wps

Schedule+ Contacts File (.scd)

Works 4.0 File (.wps)

scd2xml

Schedule+ Contacts File (.scd)

XML File Format (.xml)

scd2htf

Schedule+ Contacts File (.scd)

Web Page, filtered (.htm)

slk2pdf

Symbolic Link Format File (.slk)

Adobe Acrobat Format (.pdf)

slk2htm

Symbolic Link Format File (.slk)

Web Page (.htm; .html)

slk2txt

Symbolic Link Format File (.slk)

ASCII Text File (.txt)

slk2xml

Symbolic Link Format File (.slk)

XML File Format (.xml)

slk2csv

Symbolic Link Format File (.slk)

Comma Separated Values File (.csv)

slk2dif

Symbolic Link Format File (.slk)

Data Interchange Format File (.dif)

slk2xl2

Symbolic Link Format File (.slk)

Excel 2.1 (.xls)

slk2xl3

Symbolic Link Format File (.slk)

Excel 3.0 (.xls)

slk2xl4

Symbolic Link Format File (.slk)

Excel 4.0 (.xls)

slk2xl5

Symbolic Link Format File (.slk)

Excel 5.0 / 95 (.xls)

slk2xls

Symbolic Link Format File (.slk)

Excel 97-02 & 5.0/95 (.xls)

slk2db2

Symbolic Link Format File (.slk)

dBASE II (.dbf)

slk2db3

Symbolic Link Format File (.slk)

dBASE III (.dbf)

slk2db4

Symbolic Link Format File (.slk)

dBASE IV (.dbf)

slk2wks

Symbolic Link Format File (.slk)

Works 2.0 File / Lotus Worksheet (.wks)

slk2xlt

Symbolic Link Format File (.slk)

Excel Template (.xlt)

slk2mht

Symbolic Link Format File (.slk)

WebArchive File (.mht; .mhtml)

ans2pdf

Text with Layout Format (.ans)

Adobe Acrobat Format (.pdf)

ans2htm

Text with Layout Format (.ans)

Web Page (.htm; .html)

ans2txt

Text with Layout Format (.ans)

ASCII Text File (.txt)

ans2doc

Text with Layout Format (.ans)

Word Document Format (.doc)

ans2rtf

Text with Layout Format (.ans)

Rich Text Format File (.rtf)

ans2dot

Text with Layout Format (.ans)

Word Template (.dot)

ans2wpt

Text with Layout Format (.ans)

WordPerfect 5.0 File (.doc)

ans2mht

Text with Layout Format (.ans)

WebArchive File (.mht; .mhtml)

ans2wps

Text with Layout Format (.ans)

Works 4.0 File (.wps)

ans2xml

Text with Layout Format (.ans)

XML File Format (.xml)

ans2htf

Text with Layout Format (.ans)

Web Page, filtered (.htm)

htm2pdf

Web Page (.htm;.html)

Adobe Acrobat Format (.pdf)

htm2txt

Web Page (.htm;.html)

ASCII Text File (.txt)

htm2doc

Web Page (.htm;.html)

Word Document Format (.doc)

htm2rtf

Web Page (.htm;.html)

Rich Text Format File (.rtf)

htm2dot

Web Page (.htm;.html)

Word Template (.dot)

htm2ans

Web Page (.htm;.html)

Text with Layout Format (.ans)

htm2wpt

Web Page (.htm;.html)

WordPerfect 5.0 File (.doc)

htm2mht

Web Page (.htm;.html)

WebArchive File (.mht; .mhtml)

htm2wps

Web Page (.htm;.html)

Works 4.0 File (.wps)

htm2xml

Web Page (.htm;.html)

XML File Format (.xml)

htm2htf

Web Page (.htm;.html)

Web Page, filtered (.htm)

htm2csv

Web Page (.htm;.html)

Comma Separated Values File (.csv)

htm2dif

Web Page (.htm;.html)

Data Interchange Format File (.dif)

htm2xl2

Web Page (.htm;.html)

Excel 2.1 (.xls)

Code

Source format

Target format

htm2xl3

Web Page (.htm;.html)

Excel 3.0 (.xls)

htm2xl4

Web Page (.htm;.html)

Excel 4.0 (.xls)

htm2xl5

Web Page (.htm;.html)

Excel 5.0 / 95 (.xls)

htm2xls

Web Page (.htm;.html)

Excel 97-02 & 5.0/95 (.xls)

htm2db2

Web Page (.htm;.html)

dBASE II (.dbf)

htm2db3

Web Page (.htm;.html)

dBASE III (.dbf)

htm2db4

Web Page (.htm;.html)

dBASE IV (.dbf)

htm2wks

Web Page (.htm;.html)

Works 2.0 File / Lotus Worksheet (.wks)

htm2xlt

Web Page (.htm;.html)

Excel Template (.xlt)

htm2slk

Web Page (.htm;.html)

Symbolic Link Format File (.slk)

htm2bmp

Web Page (.htm;.html)

Windows Bitmap (.bmp)

htm2gif

Web Page (.htm;.html)

GIF Format (.gif)

htm2jpg

Web Page (.htm;.html)

JPG Format (.jpg)

htm2png

Web Page (.htm;.html)

PNG Format (.png)

htm2htd

Web Page (.htm;.html)

Web Page, dual (.htm; .html)

htm2ht3

Web Page (.htm;.html)

Web Page, V3 (.htm; .html)

htm2ppt

Web Page (.htm;.html)

PowerPoint Presentation Format (.ppt)

htm2pp7

Web Page (.htm;.html)

Powerpoint 7 (.ppt)

htm2pot

Web Page (.htm;.html)

Powerpoint Template (.pot)

htm2pps

Web Page (.htm;.html)

PowerPoint SlideShow File (.pps)

htm2tif

Web Page (.htm;.html)

TIF Format (.tif)

mht2pdf

WebArchive File (.mht;.mhtml)

Adobe Acrobat Format (.pdf)

mht2htm

WebArchive File (.mht;.mhtml)

Web Page (.htm; .html)

mht2txt

WebArchive File (.mht;.mhtml)

ASCII Text File (.txt)

mht2doc

WebArchive File (.mht;.mhtml)

Word Document Format (.doc)

mht2rtf

WebArchive File (.mht;.mhtml)

Rich Text Format File (.rtf)

mht2dot

WebArchive File (.mht;.mhtml)

Word Template (.dot)

mht2ans

WebArchive File (.mht;.mhtml)

Text with Layout Format (.ans)

mht2wpt

WebArchive File (.mht;.mhtml)

WordPerfect 5.0 File (.doc)

mht2wps

WebArchive File (.mht;.mhtml)

Works 4.0 File (.wps)

mht2xml

WebArchive File (.mht;.mhtml)

XML File Format (.xml)

mht2htf

WebArchive File (.mht;.mhtml)

Web Page, filtered (.htm)

mht2csv

WebArchive File (.mht;.mhtml)

Comma Separated Values File (.csv)

mht2dif

WebArchive File (.mht;.mhtml)

Data Interchange Format File (.dif)

mht2xl2

WebArchive File (.mht;.mhtml)

Excel 2.1 (.xls)

mht2xl3

WebArchive File (.mht;.mhtml)

Excel 3.0 (.xls)

mht2xl4

WebArchive File (.mht;.mhtml)

Excel 4.0 (.xls)

mht2xl5

WebArchive File (.mht;.mhtml)

Excel 5.0 / 95 (.xls)

mht2xls

WebArchive File (.mht;.mhtml)

Excel 97-02 & 5.0/95 (.xls)

mht2db2

WebArchive File (.mht;.mhtml)

dBASE II (.dbf)

mht2db3

WebArchive File (.mht;.mhtml)

dBASE III (.dbf)

mht2db4

WebArchive File (.mht;.mhtml)

dBASE IV (.dbf)

mht2wks

WebArchive File (.mht;.mhtml)

Works 2.0 File / Lotus Worksheet (.wks)

mht2xlt

WebArchive File (.mht;.mhtml)

Excel Template (.xlt)

mht2slk

WebArchive File (.mht;.mhtml)

Symbolic Link Format File (.slk)

mht2bmp

WebArchive File (.mht;.mhtml)

Windows Bitmap (.bmp)

mht2gif

WebArchive File (.mht;.mhtml)

GIF Format (.gif)

mht2jpg

WebArchive File (.mht;.mhtml)

JPG Format (.jpg)

mht2png

WebArchive File (.mht;.mhtml)

PNG Format (.png)

mht2htd

WebArchive File (.mht;.mhtml)

Web Page, dual (.htm; .html)

mht2ht3

WebArchive File (.mht;.mhtml)

Web Page, V3 (.htm; .html)

mht2ppt

WebArchive File (.mht;.mhtml)

PowerPoint Presentation Format (.ppt)

mht2pp7

WebArchive File (.mht;.mhtml)

Powerpoint 7 (.ppt)

mht2pot

WebArchive File (.mht;.mhtml)

Powerpoint Template (.pot)

mht2pps

WebArchive File (.mht;.mhtml)

PowerPoint SlideShow File (.pps)

mht2tif

WebArchive File (.mht;.mhtml)

TIF Format (.tif)

wri2pdf

Windows Write File (.wri)

Adobe Acrobat Format (.pdf)

wri2htm

Windows Write File (.wri)

Web Page (.htm; .html)

wri2txt

Windows Write File (.wri)

ASCII Text File (.txt)

wri2doc

Windows Write File (.wri)

Word Document Format (.doc)

wri2rtf

Windows Write File (.wri)

Rich Text Format File (.rtf)

wri2dot

Windows Write File (.wri)

Word Template (.dot)

wri2ans

Windows Write File (.wri)

Text with Layout Format (.ans)

Code

Source format

Target format

wri2wpt

Windows Write File (.wri)

WordPerfect 5.0 File (.doc)

wri2mht

Windows Write File (.wri)

WebArchive File (.mht; .mhtml)

wri2wps

Windows Write File (.wri)

Works 4.0 File (.wps)

wri2xml

Windows Write File (.wri)

XML File Format (.xml)

wri2htf

Windows Write File (.wri)

Web Page, filtered (.htm)

doc2pdf

Word Document Format (.doc)

Adobe Acrobat Format (.pdf)

doc2htm

Word Document Format (.doc)

Web Page (.htm; .html)

doc2txt

Word Document Format (.doc)

ASCII Text File (.txt)

doc2rtf

Word Document Format (.doc)

Rich Text Format File (.rtf)

doc2dot

Word Document Format (.doc)

Word Template (.dot)

doc2ans

Word Document Format (.doc)

Text with Layout Format (.ans)

doc2wpt

Word Document Format (.doc)

WordPerfect 5.0 File (.doc)

doc2mht

Word Document Format (.doc)

WebArchive File (.mht; .mhtml)

doc2wps

Word Document Format (.doc)

Works 4.0 File (.wps)

doc2xml

Word Document Format (.doc)

XML File Format (.xml)

doc2htf

Word Document Format (.doc)

Web Page, filtered (.htm)

mcw2pdf

Word for Macintosh Format (.mcw)

Adobe Acrobat Format (.pdf)

mcw2htm

Word for Macintosh Format (.mcw)

Web Page (.htm; .html)

mcw2txt

Word for Macintosh Format (.mcw)

ASCII Text File (.txt)

mcw2doc

Word for Macintosh Format (.mcw)

Word Document Format (.doc)

mcw2rtf

Word for Macintosh Format (.mcw)

Rich Text Format File (.rtf)

mcw2dot

Word for Macintosh Format (.mcw)

Word Template (.dot)

mcw2ans

Word for Macintosh Format (.mcw)

Text with Layout Format (.ans)

mcw2wpt

Word for Macintosh Format (.mcw)

WordPerfect 5.0 File (.doc)

mcw2mht

Word for Macintosh Format (.mcw)

WebArchive File (.mht; .mhtml)

mcw2wps

Word for Macintosh Format (.mcw)

Works 4.0 File (.wps)

mcw2xml

Word for Macintosh Format (.mcw)

XML File Format (.xml)

mcw2htf

Word for Macintosh Format (.mcw)

Web Page, filtered (.htm)

dot2pdf

Word Template (.dot)

Adobe Acrobat Format (.pdf)

dot2htm

Word Template (.dot)

Web Page (.htm; .html)

dot2txt

Word Template (.dot)

ASCII Text File (.txt)

dot2doc

Word Template (.dot)

Word Document Format (.doc)

dot2rtf

Word Template (.dot)

Rich Text Format File (.rtf)

dot2ans

Word Template (.dot)

Text with Layout Format (.ans)

dot2wpt

Word Template (.dot)

WordPerfect 5.0 File (.doc)

dot2mht

Word Template (.dot)

WebArchive File (.mht; .mhtml)

dot2wps

Word Template (.dot)

Works 4.0 File (.wps)

dot2xml

Word Template (.dot)

XML File Format (.xml)

dot2htf

Word Template (.dot)

Web Page, filtered (.htm)

wpt2pdf

WordPerfect 5.0 File (.doc)

Adobe Acrobat Format (.pdf)

wpt2htm

WordPerfect 5.0 File (.doc)

Web Page (.htm; .html)

wpt2txt

WordPerfect 5.0 File (.doc)

ASCII Text File (.txt)

wpt2doc

WordPerfect 5.0 File (.doc)

Word Document Format (.doc)

wpt2rtf

WordPerfect 5.0 File (.doc)

Rich Text Format File (.rtf)

wpt2dot

WordPerfect 5.0 File (.doc)

Word Template (.dot)

wpt2ans

WordPerfect 5.0 File (.doc)

Text with Layout Format (.ans)

wpt2mht

WordPerfect 5.0 File (.doc)

WebArchive File (.mht; .mhtml)

wpt2wps

WordPerfect 5.0 File (.doc)

Works 4.0 File (.wps)

wpt2xml

WordPerfect 5.0 File (.doc)

XML File Format (.xml)

wpt2htf

WordPerfect 5.0 File (.doc)

Web Page, filtered (.htm)

wpd2pdf

WordPerfect 6.x File (.wpd)

Adobe Acrobat Format (.pdf)

wpd2htm

WordPerfect 6.x File (.wpd)

Web Page (.htm; .html)

wpd2txt

WordPerfect 6.x File (.wpd)

ASCII Text File (.txt)

wpd2doc

WordPerfect 6.x File (.wpd)

Word Document Format (.doc)

wpd2rtf

WordPerfect 6.x File (.wpd)

Rich Text Format File (.rtf)

wpd2dot

WordPerfect 6.x File (.wpd)

Word Template (.dot)

wpd2ans

WordPerfect 6.x File (.wpd)

Text with Layout Format (.ans)

wpd2wpt

WordPerfect 6.x File (.wpd)

WordPerfect 5.0 File (.doc)

wpd2mht

WordPerfect 6.x File (.wpd)

WebArchive File (.mht; .mhtml)

wpd2wps

WordPerfect 6.x File (.wpd)

Works 4.0 File (.wps)

wpd2xml

WordPerfect 6.x File (.wpd)

XML File Format (.xml)

wpd2htf

WordPerfect 6.x File (.wpd)

Web Page, filtered (.htm)

wks2pdf

Works 2.0 File / Lotus Worksheet (.wks)

Adobe Acrobat Format (.pdf)

Code

Source format

Target format

wks2htm

Works 2.0 File / Lotus Worksheet (.wks)

Web Page (.htm; .html)

wks2txt

Works 2.0 File / Lotus Worksheet (.wks)

ASCII Text File (.txt)

wks2xml

Works 2.0 File / Lotus Worksheet (.wks)

XML File Format (.xml)

wks2csv

Works 2.0 File / Lotus Worksheet (.wks)

Comma Separated Values File (.csv)

wks2dif

Works 2.0 File / Lotus Worksheet (.wks)

Data Interchange Format File (.dif)

wks2xl2

Works 2.0 File / Lotus Worksheet (.wks)

Excel 2.1 (.xls)

wks2xl3

Works 2.0 File / Lotus Worksheet (.wks)

Excel 3.0 (.xls)

wks2xl4

Works 2.0 File / Lotus Worksheet (.wks)

Excel 4.0 (.xls)

wks2xl5

Works 2.0 File / Lotus Worksheet (.wks)

Excel 5.0 / 95 (.xls)

wks2xls

Works 2.0 File / Lotus Worksheet (.wks)

Excel 97-02 & 5.0/95 (.xls)

wks2db2

Works 2.0 File / Lotus Worksheet (.wks)

dBASE II (.dbf)

wks2db3

Works 2.0 File / Lotus Worksheet (.wks)

dBASE III (.dbf)

wks2db4

Works 2.0 File / Lotus Worksheet (.wks)

dBASE IV (.dbf)

wks2xlt

Works 2.0 File / Lotus Worksheet (.wks)

Excel Template (.xlt)

wks2mht

Works 2.0 File / Lotus Worksheet (.wks)

WebArchive File (.mht; .mhtml)

wks2slk

Works 2.0 File / Lotus Worksheet (.wks)

Symbolic Link Format File (.slk)

wps2pdf

Works 4.0 File (.wps)

Adobe Acrobat Format (.pdf)

wps2htm

Works 4.0 File (.wps)

Web Page (.htm; .html)

wps2txt

Works 4.0 File (.wps)

ASCII Text File (.txt)

wps2doc

Works 4.0 File (.wps)

Word Document Format (.doc)

wps2rtf

Works 4.0 File (.wps)

Rich Text Format File (.rtf)

wps2dot

Works 4.0 File (.wps)

Word Template (.dot)

wps2ans

Works 4.0 File (.wps)

Text with Layout Format (.ans)

wps2wpt

Works 4.0 File (.wps)

WordPerfect 5.0 File (.doc)

wps2mht

Works 4.0 File (.wps)

WebArchive File (.mht; .mhtml)

wps2wps

Works 4.0 File (.wps)

Works 4.0 File (.wps)

wps2xml

Works 4.0 File (.wps)

XML File Format (.xml)

wps2htf

Works 4.0 File (.wps)

Web Page, filtered (.htm)

wps2bmp

Works 4.0 File (.wps)

Windows Bitmap (.bmp)

wps2gif

Works 4.0 File (.wps)

GIF Format (.gif)

wps2jpg

Works 4.0 File (.wps)

JPG Format (.jpg)

wps2png

Works 4.0 File (.wps)

PNG Format (.png)

wps2htd

Works 4.0 File (.wps)

Web Page, dual (.htm; .html)

wps2ht3

Works 4.0 File (.wps)

Web Page, V3 (.htm; .html)

wps2ppt

Works 4.0 File (.wps)

PowerPoint Presentation Format (.ppt)

wps2pp7

Works 4.0 File (.wps)

Powerpoint 7 (.ppt)

wps2pot

Works 4.0 File (.wps)

Powerpoint Template (.pot)

wps2pps

Works 4.0 File (.wps)

PowerPoint SlideShow File (.pps)

wps2tif

Works 4.0 File (.wps)

TIF Format (.tif)

xml2pdf

XML File Format (.xml)

Adobe Acrobat Format (.pdf)

xml2htm

XML File Format (.xml)

Web Page (.htm; .html)

xml2txt

XML File Format (.xml)

ASCII Text File (.txt)

xml2doc

XML File Format (.xml)

Word Document Format (.doc)

xml2rtf

XML File Format (.xml)

Rich Text Format File (.rtf)

xml2dot

XML File Format (.xml)

Word Template (.dot)

xml2ans

XML File Format (.xml)

Text with Layout Format (.ans)

xml2wpt

XML File Format (.xml)

WordPerfect 5.0 File (.doc)

xml2mht

XML File Format (.xml)

WebArchive File (.mht; .mhtml)

xml2wps

XML File Format (.xml)

Works 4.0 File (.wps)

xml2htf

XML File Format (.xml)

Web Page, filtered (.htm)

xml2csv

XML File Format (.xml)

Comma Separated Values File (.csv)

xml2dif

XML File Format (.xml)

Data Interchange Format File (.dif)

xml2xl2

XML File Format (.xml)

Excel 2.1 (.xls)

xml2xl3

XML File Format (.xml)

Excel 3.0 (.xls)

xml2xl4

XML File Format (.xml)

Excel 4.0 (.xls)

xml2xl5

XML File Format (.xml)

Excel 5.0 / 95 (.xls)

xml2xls

XML File Format (.xml)

Excel 97-02 & 5.0/95 (.xls)

xml2db2

XML File Format (.xml)

dBASE II (.dbf)

xml2db3

XML File Format (.xml)

dBASE III (.dbf)

xml2db4

XML File Format (.xml)

dBASE IV (.dbf)

xml2wks

XML File Format (.xml)

Works 2.0 File / Lotus Worksheet (.wks)

xml2xlt

XML File Format (.xml)

Excel Template (.xlt)

xml2slk

XML File Format (.xml)

Symbolic Link Format File (.slk)

 Command line examples



Run the job Daily Reports and close JobMaster:



JobMaster.exe RQ Daily Reports



Convert all *.doc files in C:\My Data\ and subfolders to PDF format to C:\Web\My Documents and close JobMaster:



JobMaster.exe CSQ DIR "C:\My Data" "C:\Web\My Documents" DOC2PDF



Convert the file C:\My Documents\factsheet.xls to HTML to \\server01\webshare\web if the source file is newer:



JobMaster.exe CY FILE "C:\My Documents\factsheet.xls" "\\server01\webshare\web" XLS2HTM



Copy all newer files in C:\My Documents and subfolders to D:\Backup, close after copy process. Also hidden files will be processed in this example:



JobMaster.exe PYISQ DIR "C:\My Documents" "D:\Backup"



Delete all files in E:\work_share\tempdir, without subfolders:



JobMaster.exe D DIR "E:\work_share\tempdir"



Convert all pictures in the PowerPoint presentation C:\presentations\newyork.ppt to JPEG format to C:\webdata\pictures\:



JobMaster.exe C FILE "C:\presentations\newyork.ppt" "C:\webdata\pictures" PPT2JPG



Convert file overv.htm to PDF format from internet resource http://www.mindleads.com/en/products/jobmaster/overv.htm to C:\temp\



JobMaster.exe C URL "http://www.mindleads.com/en/products/jobmaster/overv.htm" "C:\temp" htm2pdf




Required Files



For a properly operation of JobMaster, the following files are required in the version listed below:



File Name

Path

Version

JOBMASTER.EXE

Installation folder

4.0.0.x

JMOFWATCH.EXE

Installation folder\bin

1.0.0.22

LOGVIEWER.EXE

Installation folder

4.10.0.57

JMDLGHANDLER.EXE

Installation folder\bin

3.0.0.6

JMABOUT32.DLL

Installation folder

4.0.0.9

JMCOPYOPT.DLL

Installation folder

3.2.0.48

JMEXEOPT.DLL

Installation folder

1.0.0.11

JMDELIMSCR.DLL

Installation folder

2.0.0.6

JMDOCINFO.DLL

Installation folder

2.30.0.11

SHLWAPI.DLL

Installation folder

6.0.2800.1400*

WININET.DLL

Installation folder

6.0.2800.1405*

MSVBVM60.DLL

System folder

6.0.97.82

OLEAUT32.DLL

System folder

2.40.4522.0

OLEPRO32.DLL

System folder

5.0.4522.0

ASYCFILT.DLL

System folder

2.40.4522.0

STDOLE2.TLB

System folder

2.40.4522.0

COMCAT.DLL

System folder

5.0.2195.1



     *   According to the version of Internet Explorer, these files can be different in version; they should be higher than 4.0.x though.

Registry Settings



Key:

HKEY_LOCAL_MACHINE\Software\Mindleads Technology\JobMaster\acrPDFWriterName



Format:        <PDFWriter Printer Name>

Default:        Acrobat PDFWriter

Type:           REG_SZ



This registry entry changes the Acrobat PDFWriter setting which is described on page 40. If the Acrobat PDFWriter printer on your machine is not named Acrobat PDFWriter, you have to change this entry according to the corresponding.



Key:

HKEY_LOCAL_MACHINE\Software\Mindleads Technology\JobMaster\acrDistillerName



Format:        <Acrobat Distiller Printer Name>

Default:        Acrobat Distiller

Type:           REG_SZ



This registry entry changes the Acrobat Distiller printer setting which is described on page 40. If the Acrobat Distiller printer on your machine is not named Acrobat Distiller, you have to change this entry according to the corresponding. This entry is only required, if Adobe Acrobat 5 or lower is installed on the machine.


Key:

HKEY_LOCAL_MACHINE\Software\Mindleads Technology\JobMaster\acrDistiller6Name



Format:        <Acrobat Distiller Printer Name>

Default:        Adobe PDF

Type:           REG_SZ



This entry is only required, if Adobe Acrobat 6 or higher is installed on the machine. If the PDF printer on your machine is not named Adobe PDF, you have to change this entry according to the corresponding.



Key:

HKEY_LOCAL_MACHINE\Software\Mindleads Technology\JobMaster\LVMaxItems



Format:        <Value between 1000 and 20000>

Default:        6000

Type:           REG_DWORD



This registry entry sets the maximum of messages in LogViewer. Enter a value between 1000 and 20000. Note that the system requires more memory (RAM) if you enter a higher value than 6000. Also CPU-Load increases drastically when using the sort-functions.
